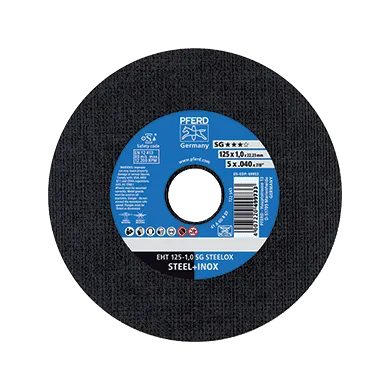

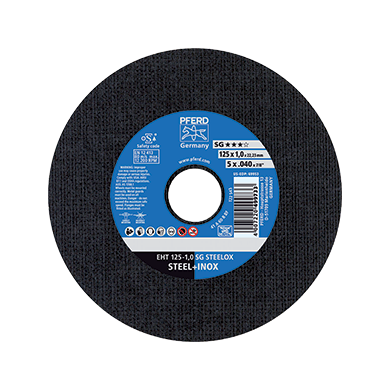

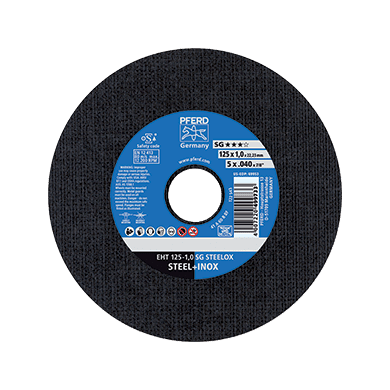

Browse part numbers, sizes and technical data
| PART NO. | DIAMETER [mm] | THICKNESS [mm] | INTERNAL BORE [mm] | MAX RPM | BOX QTY |
|---|---|---|---|---|---|
| MC100T | 105 | 1 | 16 | 14,500 | 25 |
| MC115T | 115 | 1 | 22 | 13,300 | 25 |
| MC125T | 125 | 1 | 22 | 12,200 | 25 |
| MC230T | 230 | 1.9 | 22 | 6,600 | 25 |
Click to View
Click to View
Click to View
If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.
Thanks for helping us keep things accurate.
CLICK TO OPEN TABLES BELOW
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 8 | 13.7 | 0.63 | 0.7 |
| 10 | 17.1 | 0.84 | 0.96 |
| 15 | 21.3 | 1.27 | 1.47 |
| 20 | 26.7 | 1.69 | 2.04 |
| 25 | 33.4 | 2.5 | 3.05 |
| 32 | 42.2 | 3.39 | 4.36 |
| 40 | 48.3 | 4.05 | 5.37 |
| 50 | 60.3 | 5.44 | 7.6 |
| 65 | 73 | 8.63 | 11.72 |
| 80 | 88.9 | 11.29 | 16.06 |
| 90 | 101.6 | 13.57 | 19.95 |
| 100 | 114.3 | 16.07 | 24.28 |
| 125 | 141.3 | 21.77 | 34.68 |
| 150 | 168.3 | 28.26 | 46.91 |
| 200 | 219.1 | 42.55 | 74.83 |
| 250 | 273.1 | 60.31 | 111.2 |
| 300 | 323.9 | 79.73 | 151.97 |
| 350 | 355.6 | 94.55 | 181.82 |
| 400 | 406.4 | 123.3 | 237.31 |
| 450 | 457 | 155.8 | 299.98 |
| 500 | 508 | 183.42 | 362.12 |
| 600 | 610 | 255.41 | 515.12 |
| 800 | 813 | 342.91 | 818.35 |
| 900 | 914 | 420.42 | 1022.98 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 8 | 14 | 0.68 | 0.74 |
| 10 | 17 | 0.89 | 1.01 |
| 15 | 21 | 1.27 | 1.47 |
| 20 | 27 | 1.65 | 2.02 |
| 25 | 34 | 2.52 | 3.11 |
| 32 | 43 | 3.24 | 4.26 |
| 40 | 48 | 3.73 | 5.11 |
| 50 | 60 | 5.24 | 7.46 |
| 65 | 76 | 6.69 | 10.42 |
| 80 | 89 | 8.68 | 13.82 |
| 100 | 114 | 12.4 | 21.11 |
| 125 | 140 | 16.5 | 29.75 |
| 150 | 165 | 19.6 | 38.55 |
| 200 | 219 | 42.53 | 74.81 |
| 250 | 273 | 60.29 | 111.14 |
| 300 | 324 | 73.82 | 146.81 |
| 350 | 355 | 81.28 | 170.05 |
| 400 | 406 | 93.21 | 211.05 |
| 450 | 457 | 105.14 | 255.75 |
| 500 | 508 | 117.07 | 304.85 |
| 600 | 610 | 140.94 | 414.85 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 15 | 12.7 | 0.30 | 0.39 |
| 18 | 15.9 | 0.43 | 0.58 |
| 20 | 19.0 | 0.52 | 0.75 |
| 25 | 25.4 | 0.83 | 1.25 |
| 32 | 31.8 | 1.05 | 1.72 |
| 40 | 38.1 | 1.27 | 2.27 |
| 50 | 51.2 | 1.70 | 3.57 |
| 65 | 63.5 | 2.14 | 5.07 |
| 80 | 76.2 | 3.42 | 7.60 |
| 90 | 88.9 | 4.00 | 9.76 |
| 100 | 101.6 | 4.58 | 12.18 |
| 125 | 127.0 | 5.74 | 17.77 |
| 150 | 152.4 | 8.58 | 25.86 |
| 175 | 177.8 | 10.03 | 33.74 |
| 200 | 203.2 | 11.48 | 42.63 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 32 | 38 | 0.34 | 1.14 |
| 40 | 43.1 | 0.50 | 1.76 |
| 50 | 56.0 | 0.67 | 2.59 |
| 65 | 69.1 | 1.0 | 4.14 |
| 80 | 82.7 | 1.17 | 5.58 |
| 100 | 110.4 | 2.00 | 9.85 |
| 150 | 160.5 | 3.84 | 21.51 |
| 225 | 250.7 | 9.00 | 48.74 |
| 300 | 315.9 | 14.50 | 85.15 |
| 375 | 400 | 23.34 | 133.73 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 15 | 21 | 0.15 | 0.33 |
| 20 | 27 | 0.25 | 0.56 |
| 25 | 34 | 0.39 | 0.88 |
| 32 | 42 | 0.62 | 1.42 |
| 40 | 48 | 0.80 | 2.06 |
| 50 | 60 | 1.26 | 3.22 |
| 65 | 75 | 2.13 | 5.65 |
| 80 | 89 | 2.31 | 7.33 |
| 100 | 114 | 4.50 | 12.35 |
| 125 | 140 | 7.43 | 19.70 |
| 150 | 160 | 9.67 | 27.33 |
| 155 | 168 | 10.00 | 28.85 |
| 200 | 225 | 15.83 | 47.23 |
| 225 | 250 | 15.66 | 39.40 |
| 250 | 280 | 24.83 | 73.89 |
| 300 | 315 | 31.60 | 102.25 |
| 375 | 400 | 51.66 | 162.05 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 32 | 32 | 0.259 | 0.790 |
| 40 | 40 | 0.331 | 1.239 |
| 50 | 50 | 0.420 | 1.940 |
| 56 | 56 | 0.471 | 2.434 |
| 63 | 63 | 0.536 | 3.087 |
| 75 | 75 | 0.644 | 4.383 |
| 90 | 90 | 0.903 | 6.313 |
| 110 | 110 | 1.350 | 9.424 |
| 125 | 125 | 1.750 | 12.171 |
| 160 | 160 | 2.840 | 19.947 |
| 200 | 200 | 3.580 | 31.216 |
| 250 | 250 | 5.630 | 48.774 |
| 315 | 315 | 8.920 | 77.442 |
| NOMINAL SIZE | PIPE O.D [mm] | CUTTER O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|---|
| 225 | 269 | 257 | 22 | 61.74 |
| 300 | 346 | 336 | 35 | 105.70 |
| 375 | 427 | 415 | 51 | 161.39 |
| 450 | 512 | 504 | 67 | 225.96 |
| 535 | 594 | 584 | 86 | 310.89 |
| 600 | 678 | 664 | 111 | 393.60 |
| 675 | 752 | 733 | 133 | 490.66 |
| 750 | 802 | 783 | 157 | 598.80 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 25 | 34 | 0.39 | 1.01 |
| 32 | 43 | 0.62 | 1.61 |
| 40 | 48 | 0.82 | 2.11 |
| 50 | 60 | 1.28 | 3.31 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 100 | 122 + 1, - 2 | 17 | 27.57 |
| 150 | 177 + 1, - 2 | 25 | 47.97 |
| 200 | 232 + 1, - 2 | 33 | 73.11 |
| 225 | 259 + 1, - 2 | 39 | 89.11 |
| 250 | 286 + 1, - 2 | 45 | 106.05 |
| 300 | 345 + 1, - 2 | 60 | 148.88 |
| 375 | 426 + 2 | 83 | 218.53 |
