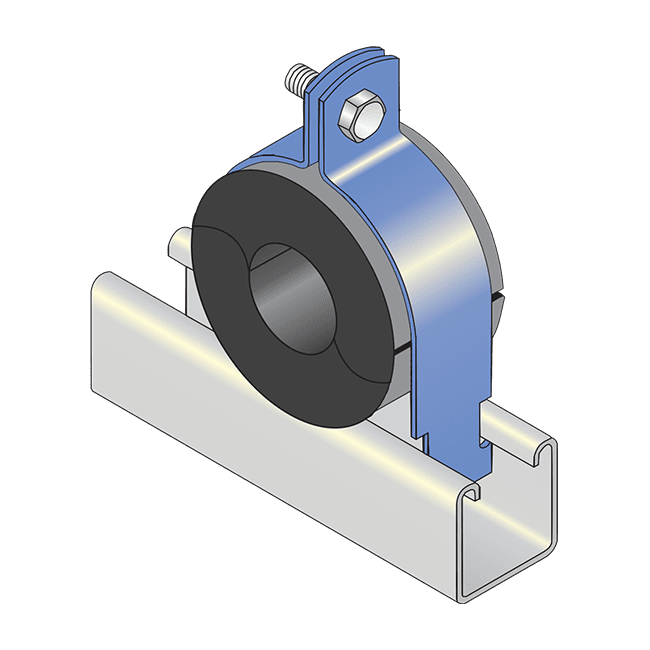

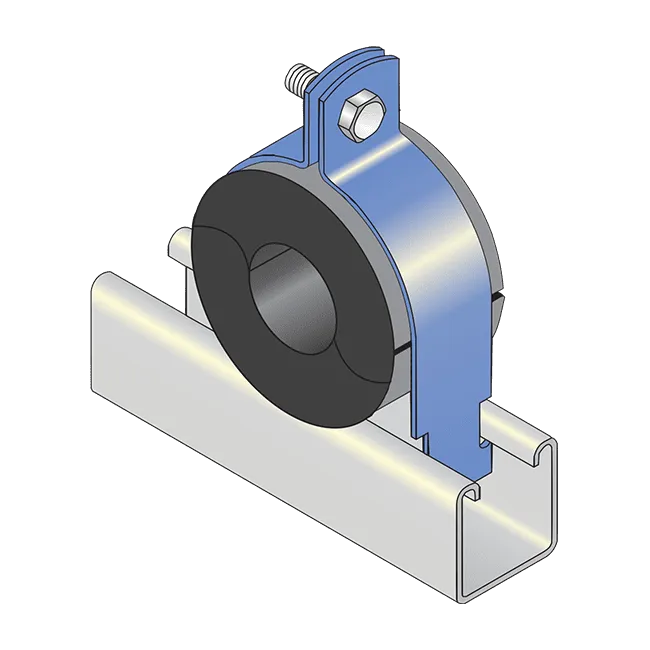

Two Piece Strut Clip & Poly Block | FB135

SUITS COPPER PIPE

Two Piece Strut Clip & Poly Block | FB135

Part No. 'Select an option' Category Strut Clips Tag Copper Pipe

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

PART NO. [ZINC]	PIPE DIA	INS.	FERRULE DIAMETER [mm]	FERRULE WIDTH [mm]
FB135-015D	15cu	25	13 x 65	50
FB135-015E	15cu	38	13 x 89	50
FB135-015F	15cu	50	13 x 115	50
FB135-020D	20cu	25	19 x 70	50
FB135-020E	20cu	38	19 x 102	50
FB135-020F	20cu	50	19 x 127	50
FB135-025D	25cu	25	25 x 76	50
FB135-025E	25cu	38	25 x 102	50
FB135-025F	25cu	50	25 x 127	50
FB135-032D	32cu	25	32 x 83	50
FB135-032E	32cu	38	32 x 115	50
FB135-032F	32cu	50	32 x 140	50
FB135-040D	40cu	25	38 x 89	50
FB135-040E	40cu	38	38 x 115	50
FB135-040F	40cu	50	38 x 140	50
FB135-050D	50cu	25	51 x 102	50
FB135-050E	50cu	38	51 x 127	50
FB135-050F	50cu	50	51 x 152	50
FB135-050J	50cu	63	51 x 178	50
FB135-050K	50cu	75	51 x 203	50
FB135-065D	65cu	25	65 x 115	50
FB135-065E	65cu	38	65 x 140	50
FB135-065F	65cu	50	65 x 165	50
FB135-065J	65cu	63	65 x 190	50
FB135-065K	65cu	75	65 x 220	50
FB135-080D	80cu	25	76 x 127	50
FB135-080E	80cu	38	76 x 152	50
FB135-080F	80cu	50	76 x 178	50
FB135-080J	80cu	63	76 x 203	50
FB135-080K	80cu	75	76 x 228	50
FB135-100D	100cu	25	102 x 152	50
FB135-100E	100cu	38	102 x 178	50
FB135-100F	100cu	50	102 x 203	50
FB135-100J	100cu	63	102 x 228	50
FB135-100K	100cu	75	102 x 252	50
FB135-125D	125cu	25	127 x 178	50
FB135-125E	125cu	38	127 x 203	50
FB135-125F	125cu	50	127 x 228	50
FB135-125J	125cu	63	127 x 252	50
FB135-125K	125cu	75	127 x 275	50
FB135-150D	150cu	25	152 x 203	50
FB135-150E	150cu	38	152 x 228	50
FB135-150F	150cu	50	152 x 252	50
FB135-150J	150cu	63	152 x 275	50
FB135-150K	150cu	75	152 x 300	50
FB135-200D	200cu	25	203 x 252	50
FB135-200E	200cu	38	203 x 275	50
FB135-200F	200cu	50	203 x 300	50
FB135-200J	200cu	63	203 x 324	50
FB135-200K	200cu	75	203 x 355	50

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.0	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	51.2	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05
