SUITS COPPER PIPE

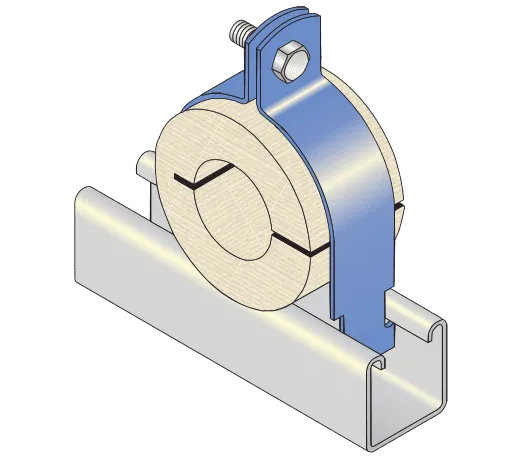

Two Piece Strut Clip & Ferrule | FM135

Part No. 'Select an option' Category Strut Clips Tag Copper Pipe

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

Standard sizes shown, for any size outside of the standard range contact us for a quote.

PART NO. [ZINC]	PIPE DIA	INS.	FERRULE DIAMETER [mm]	FERRULE WIDTH [mm]
FM135-015D	15cu	25	13 x 65	40
FM135-015E	15cu	38	13 x 89	40
FM135-015F	15cu	50	13 x 115	40
FM135-020D	20cu	25	19 x 70	40
FM135-020E	20cu	38	19 x 102	40
FM135-020F	20cu	50	19 x 127	40
FM135-025D	25cu	25	25 x 76	40
FM135-025E	25cu	38	25 x 102	40
FM135-025F	25cu	50	25 x 127	40
FM135-032D	32cu	25	32 x 83	40
FM135-032E	32cu	38	32 x 115	40
FM135-032F	32cu	50	32 x 140	40
FM135-040D	40cu	25	38 x 89	40
FM135-040E	40cu	38	38 x 115	40
FM135-040F	40cu	50	38 x 140	40
FM135-050D	50cu	25	51 x 102	40
FM135-050E	50cu	38	51 x 127	40
FM135-050F	50cu	50	51 x 152	40
FM135-050J	50cu	63	51 x 178	40
FM135-050K	50cu	75	51 x 203	40
FM135-065D	65cu	25	65 x 115	40
FM135-065E	65cu	38	65 x 140	40
FM135-065F	65cu	50	65 x 165	40
FM135-065J	65cu	63	65 x 190	40
FM135-065K	65cu	75	65 x 220	40
FM135-080D	80cu	25	76 x 127	40
FM135-080E	80cu	38	76 x 152	40
FM135-080F	80cu	50	76 x 178	40
FM135-080J	80cu	63	76 x 203	40
FM135-080K	80cu	75	76 x 228	40
FM135-100D	100cu	25	102 x 152	40
FM135-100E	100cu	38	102 x 178	40
FM135-100F	100cu	50	102 x 203	40
FM135-100J	100cu	63	102 x 228	40
FM135-100K	100cu	75	102 x 252	40
FM135-125D	125cu	25	127 x 178	40
FM135-125E	125cu	38	127 x 203	40
FM135-125F	125cu	50	127 x 228	40
FM135-125J	125cu	63	127 x 252	40
FM135-125K	125cu	75	127 x 275	40
FM135-150D	150cu	25	152 x 203	40
FM135-150E	150cu	38	152 x 228	40
FM135-150F	150cu	50	152 x 252	40
FM135-150J	150cu	63	152 x 275	40
FM135-150K	150cu	75	152 x 300	40
FM135-200D	200cu	25	203 x 252	40
FM135-200E	200cu	38	203 x 275	40
FM135-200F	200cu	50	203 x 300	40
FM135-200J	200cu	63	203 x 324	40
FM135-200K	200cu	75	203 x 355	40

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.1	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	50.8	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05

Two Piece Strut Clip & Ferrule | FM135

Product Table

PIPE

CHART GUIDE

ENGINEERING
CATALOGUE 9.4

CONSUMABLES
CATALOGUE 3.1

SUPA
CATALOGUE 4.5

Related Products

You may also like…

FM1000T – Slotted Strut

Pipe Insulation

Something looks off
or need more detail?

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	32	0.259	0.790
40	40	0.331	1.239
50	50	0.420	1.940
56	56	0.471	2.434
63	63	0.536	3.087
75	75	0.644	4.383
90	90	0.903	6.313
110	110	1.350	9.424
125	125	1.750	12.171
160	160	2.840	19.947
200	200	3.580	31.216
250	250	5.630	48.774
315	315	8.920	77.442

NOMINAL SIZE	PIPE O.D [mm]	CUTTER O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
225	269	257	22	61.74
300	346	336	35	105.70
375	427	415	51	161.39
450	512	504	67	225.96
535	594	584	86	310.89
600	678	664	111	393.60
675	752	733	133	490.66
750	802	783	157	598.80
