SUITS STEEL PIPE

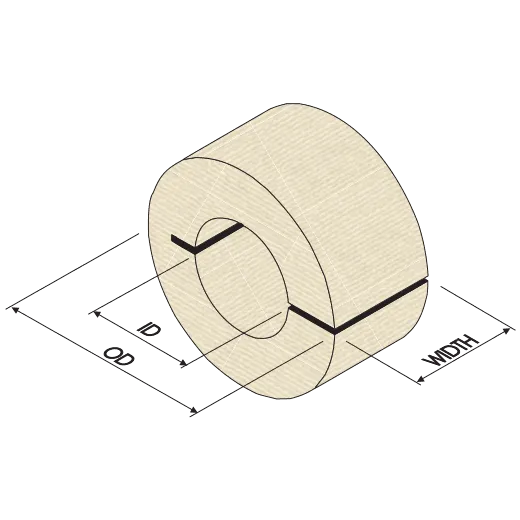

Timber Ferrule | FM136

MATERIAL
F7 GRADE STRUCTURAL PLYWOOD

STANDARD WIDTHS
40mm, 80mm, 100mm
(OTHER WIDTHS AVAILABLE ON REQUEST)

ORDER: I.D. x O.D. x WIDTH
eg: FM136 73x127x40

STANDARD SIZES SHOWN:
OTHER SIZES AVAILABLE ON REQUEST

Part No. 'Select an option' Category Ferrules / Poly Block Tag Steel Pipe

Pipe Dia.

Insulation

Width

Clear

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

PIPE SIZE [STEEL PIPE]	25mm Insulation	38mm Insulation	50mm Insulation	63mm Insulation	75mm Insulation
15nb	21.3 x 76	21.3 x 102	21.3 x 127	21.3 x 152	21.3 x 178
20nb	26.7 x 76	26.7 x 102	26.7 x 127	26.7 x 152	26.7 x 178
25nb [alt]		32 x 108	32 x 133
25nb	33.4 x 83	33.4 x 115	33.4 x 140	33.4 x 160	33.4 x 190
32nb	42.2 x 89	42.2 x 115	42.2 x 140	42.2 x 168	42.2 x 190
40nb	48.3 x 102	48.3 x 127	48.3 x 152	48.3 x 175	48.3 x 203
50nb	60.3 x 115	60.3 x 140	60.3 x 165	60.3 x 190	60.3 x 203
65nb	73 x 127	73 x 152	73 x 178	73 x 203	73 x 228
80nb	88.9 x 140	88.9 x 165	88.9 x 190	88.9 x 220	88.9 x 240
100nb	114.3 x 165	114.3 x 190	114.3 x 220	114.3 x 240	114.3 x 268
125nb	141.3 x 190	141.3 x 220	141.3 x 240	141.3 x 268	141.3 x 303
150nb	165.1 x 220	165.1 x 240	165.1 x 268	165.1 x 303	165.1 x 324
150nb [Sched 40]	168.3 x 220	168.3 x 240	168.3 x 268	168.3 x 303	168.3 x 324
200nb	219.1 x 275	219.1 x 302	219.1 x 324	219.1 x 355	219.1 x 375
250nb	273 x 324	273 x 356	273 x 375	273 x 406	273 x 424
300nb	324 x 375	324 x 406	324 x 424	324 x 456	324 x 475
350nb	355.6 x 406	355.6 x 424	355.6 x 457	355.6 x 485	355.6 x 508
400nb	406.4 x 457	406.4 x 486	406.4 x 508	406.4 x 536	406.4 x 557
450nb	457 x 508	457 x 533	457 x 557	457 x 587	457 x 608
500nb	508 x 557	508 x 587	508 x 610	508 x 638	508 x 658
600nb	609.6 x 660	609.6 x 685	609.6 x 710	609.6 x 740	609.6 x 760

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.1	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	50.8	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05

Timber Ferrule | FM136

Product Table

PIPE

CHART GUIDE

ENGINEERING
CATALOGUE 9.4

CONSUMABLES
CATALOGUE 3.1

SUPA
CATALOGUE 4.5

Related Products

Something looks off
or need more detail?

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	32	0.259	0.790
40	40	0.331	1.239
50	50	0.420	1.940
56	56	0.471	2.434
63	63	0.536	3.087
75	75	0.644	4.383
90	90	0.903	6.313
110	110	1.350	9.424
125	125	1.750	12.171
160	160	2.840	19.947
200	200	3.580	31.216
250	250	5.630	48.774
315	315	8.920	77.442

NOMINAL SIZE	PIPE O.D [mm]	CUTTER O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
225	269	257	22	61.74
300	346	336	35	105.70
375	427	415	51	161.39
450	512	504	67	225.96
535	594	584	86	310.89
600	678	664	111	393.60
675	752	733	133	490.66
750	802	783	157	598.80
