Browse part numbers, sizes and technical data

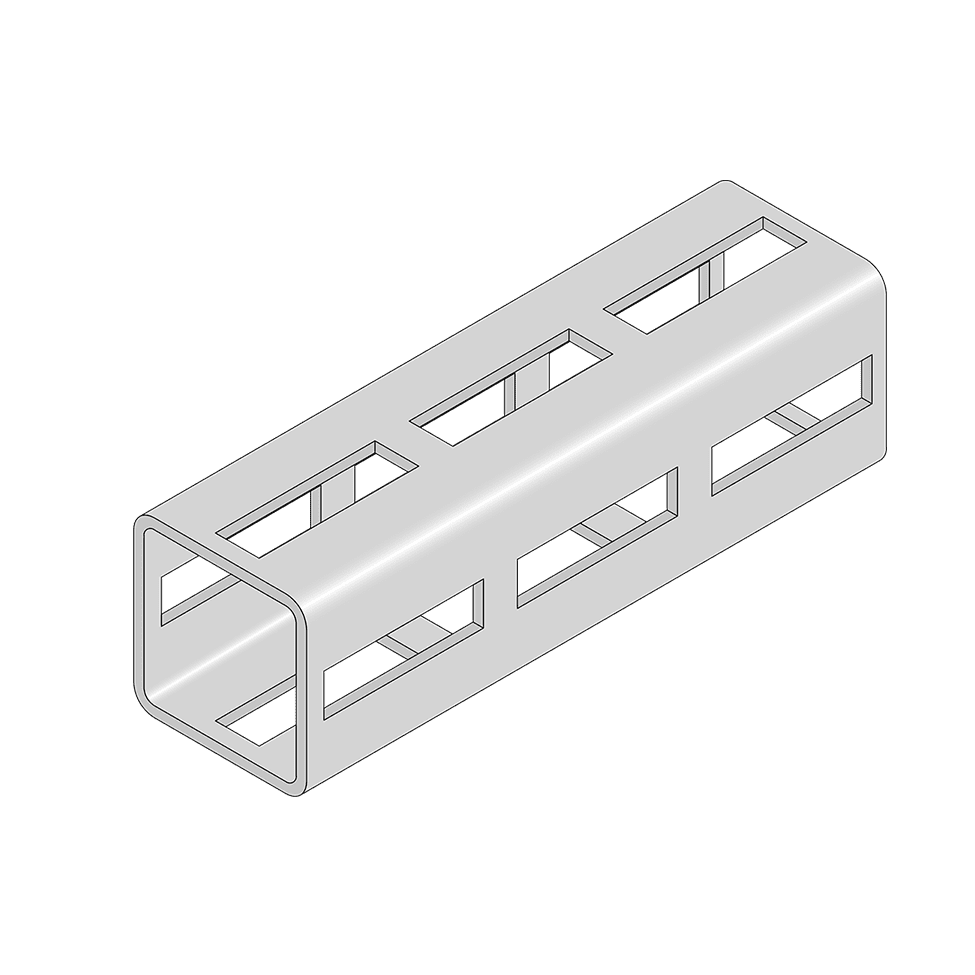

| PROFILE | SUPA50 |
|---|---|
| Dimensions [mm] | 50 x 50 |
| Thickness [mm] | 3 |
| Slot size [mm] | 12 x 46 |
| Slot spacing [mm] | 56 |
| Material | Mild Steel |
| fy | 345 MPa |
| E | 200 Mpa |
| Weight [kg/m] | 3.67 |
| Area of Section [mm²] | 397 |
| SUPA50 | X-X AXIS | Y-Y AXIS |
|---|---|---|
| Moment of inertia [ I 10⁶ mm⁴] | 0.154 | 0.154 |
| Section modulus [ Z 10³ mm³] | 6.16 | 6.16 |
| Radius of gyration [ r mm] | 19.7 | 19.7 |
| Spam (L) [mm] | P1 Load [kg] | P2 Load [kg] | W Load [kg] | |
|---|---|---|---|---|
| 500 | SUPA50 | 1262 | 872 | 2094 |
| 750 | SUPA50 | 840 | 630 | 1608 |
| 1000 | SUPA50 | 629 | 441* | 1202* |
| 1250 | SUPA50 | 480* | 281* | 767* |
| 1500 | SUPA50 | 332* | 195* | 531* |
| 1750 | SUPA50 | 242* | 142* | 388* |
| 2000 | SUPA50 | 184* | 108* | 295* |
| 2250 | SUPA50 | 144* | 85* | 230* |
| 2500 | SUPA50 | 115* | 68* | 184* |
| 2750 | SUPA50 | 94* | 55* | 150* |
| 3000 | SUPA50 | 77* | 45* | 124* |
| PART NO. [ZINC-NICKEL] | APPLICATION | SUITS [mm] | SUITS PROFILES | TORQUE [nM] | MATERIAL | |
|---|---|---|---|---|---|---|
 | SUPA50 Bolt | Secures SUPA fittings to slotted profile | 12 WIDE SLOTS | SUPA50 | 80 | 10.9 GR STEEL |
