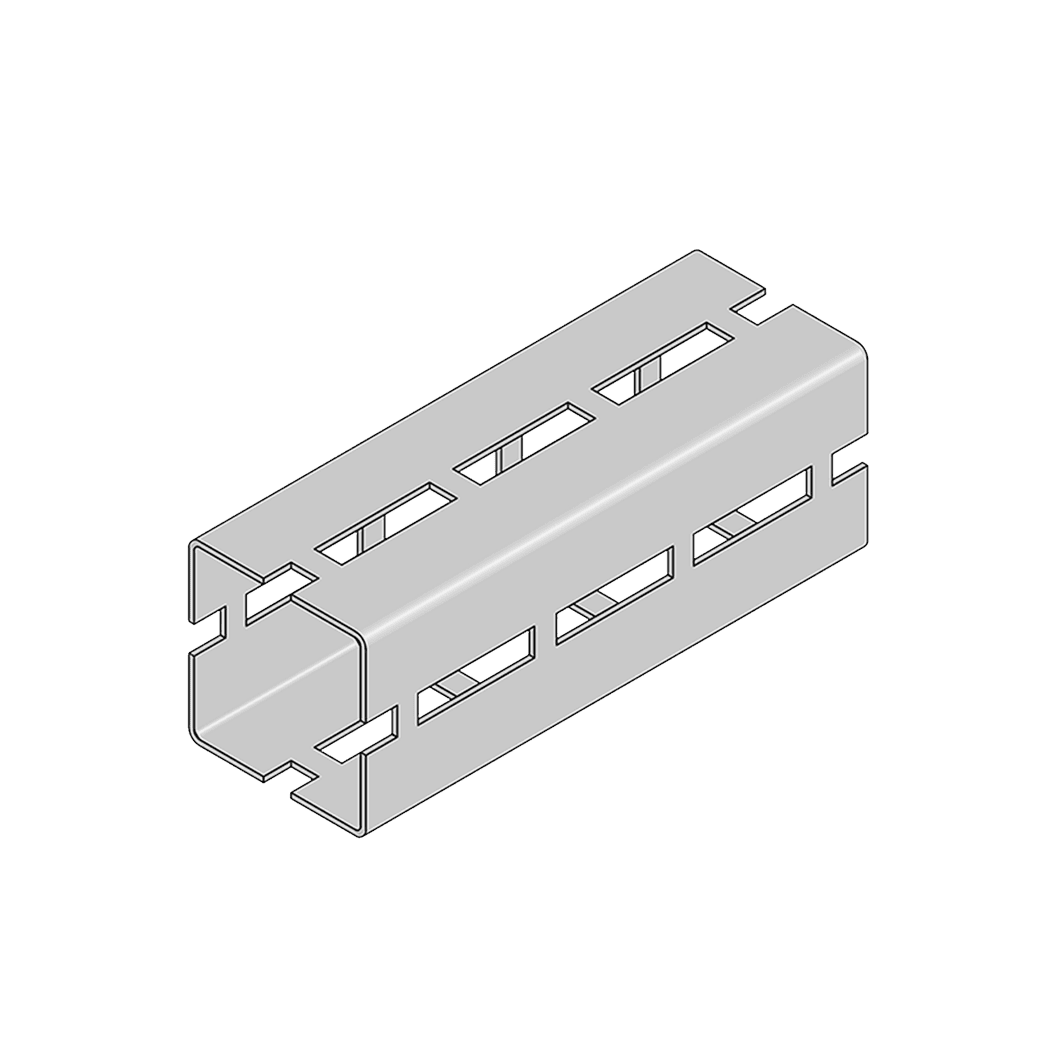

| PROFILE | SUPA100 |
|---|---|
| Dimensions [mm] | 100 x 100 |
| Thickness [mm] | 3 |
| Slot size [mm] | 15.5 x 65 |
| Slot spacing [mm] | 80 |
| Material | Mild Steel |
| fy | 345 MPa |
| E | 200 Mpa |
| Weight [kg/m] | 8.27 |
| Area of Section [mm²] | 955 |
| SUPA100 | X-X AXIS | Y-Y AXIS |
|---|---|---|
| Moment of inertia [ I 10⁶ mm⁴] | 1.55 | 1.55 |
| Section modulus [ Z 10³ mm³] | 30.996 | 30.996 |
| Radius of gyration [ r mm] | 40.29 | 40.29 |
| Spam (L) [mm] | P1 Load [kg] | P2 Load [kg] | W Load [kg] | |
|---|---|---|---|---|
| 1000 | SUPA100 | 2549 | 1871 | 4550 |
| 1500 | SUPA100 | 1695 | 1271 | 3390 |
| 2000 | SUPA100 | 1267 | 950 | 2535 |
| 2500 | SUPA100 | 1010 | 705* | 1922* |
| 3000 | SUPA100 | 828* | 486* | 1325* |
| 3500 | SUPA100 | 602* | 353* | 963* |
| 4000 | SUPA100 | 455* | 267* | 727* |
| 4500 | SUPA100 | 353* | 207* | 564* |
| 5000 | SUPA100 | 279* | 164* | 446* |
| 5500 | SUPA100 | 224* | 131* | 358* |
| 6000 | SUPA100 | 182* | 107* | 290* |
| PART NO. [ZINC-NICKEL] | APPLICATION | SUITS [mm] | SUITS PROFILES | TORQUE [nM] | |
|---|---|---|---|---|---|
 | SPBOLT-M12S | Secures SUPA fittings to slotted profile | 15.5 WIDE SLOTS | SUPA100 & SUPA80 | 100 |
 | SPBOLT-M12R | Attach round-hole components to SUPA | 14⌀ ROUND HOLES | SUPA100 & SUPA80 | 100 |
