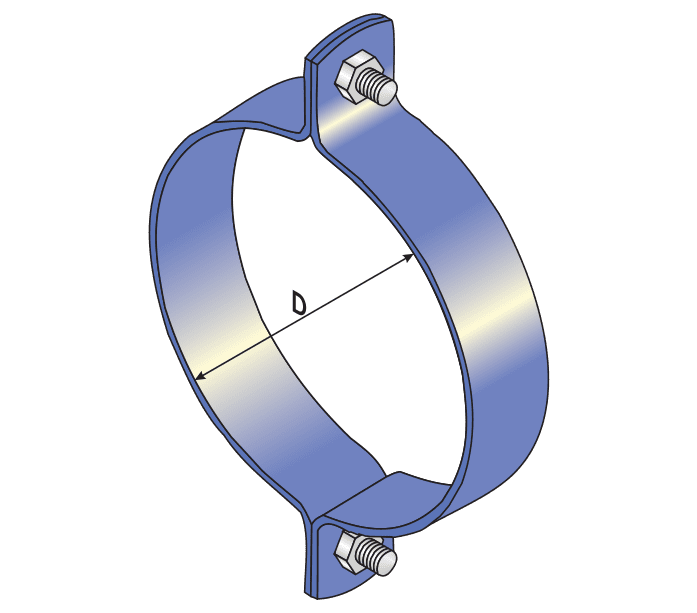

Standard Double Bolted Clamp | FM120

Name: Standard Double Bolted Clamp | FM120 - Flexistrut
Availability: InStock

Part No. 'Select an option' Category Double Bolted Clamps Tag Steel Pipe

Pipe Dia.

Clear

Product Table

To view data turn phone to landscape

Browse part numbers, sizes and technical data

PART NO. [HDG]	PIPE DIA	‘D’ [mm]	HOLE CENTRES [mm]	BOLT	MATERIAL [mm]	BOX QTY
FM120-021	15nb	21	49	M6 x 25	20 x 3	50
FM120-027	20nb	27	55	M6 x 25	20 x 3	50
FM120-034	25nb	34	64	M6 x 25	20 x 3	50
FM120-043	32nb	43	73	M6 x 25	20 x 3	25
FM120-048	40nb	48	78	M6 x 25	20 x 3	25
FM120-060	50nb	60	90	M6 x 25	20 x 3	25
FM120-076	65nb	76	106	M6 x 25	20 x 3	25
FM120-089	80nb	89	119	M6 x 25	20 x 3	20
FM120-115	100nb	115	155	M6 x 25	25 x 5	20
FM120-140	125nb	140	180	M8 x 40	25 x 5	10
FM120-168	150nb	168	208	M12 x 45	40 x 6	5
FM120-220	200nb	220	268	M12 x 45	40 x 6	5
FM120-273	250nb	273	351	M16 x 50	50 x 6	1
FM120-324	300nb	324	402	M20 x 75	50 x 10	1
FM120-355	350nb	355	434	M20 x 75	65 x 10	1
FM120-406	400nb	406	510	M24 x 90	75 x 10	1
FM120-457	450nb	457	567	M24 x 90	75 x 12	1
FM120-508	500nb	508	618	M24 x 90	75 x 16	1
FM120-610	600nb	610	740	M24 x 90	75 x 16	1
FM120-660	650nb	660	790	M24 x 90	100 x 16	1
FM120-711	700nb	711	841	M24 x 90	100 x 16	1
FM120-762	750nb	762	892	M24 x 90	100 x 16	1
FM120-813	800nb	813	973	M30 x 110	100 x 20	1
FM120-864	850nb	864	1024	M30 x 110	100 x 20	1
FM120-914	900nb	914	1074	M30 x 110	130 x 20	1
