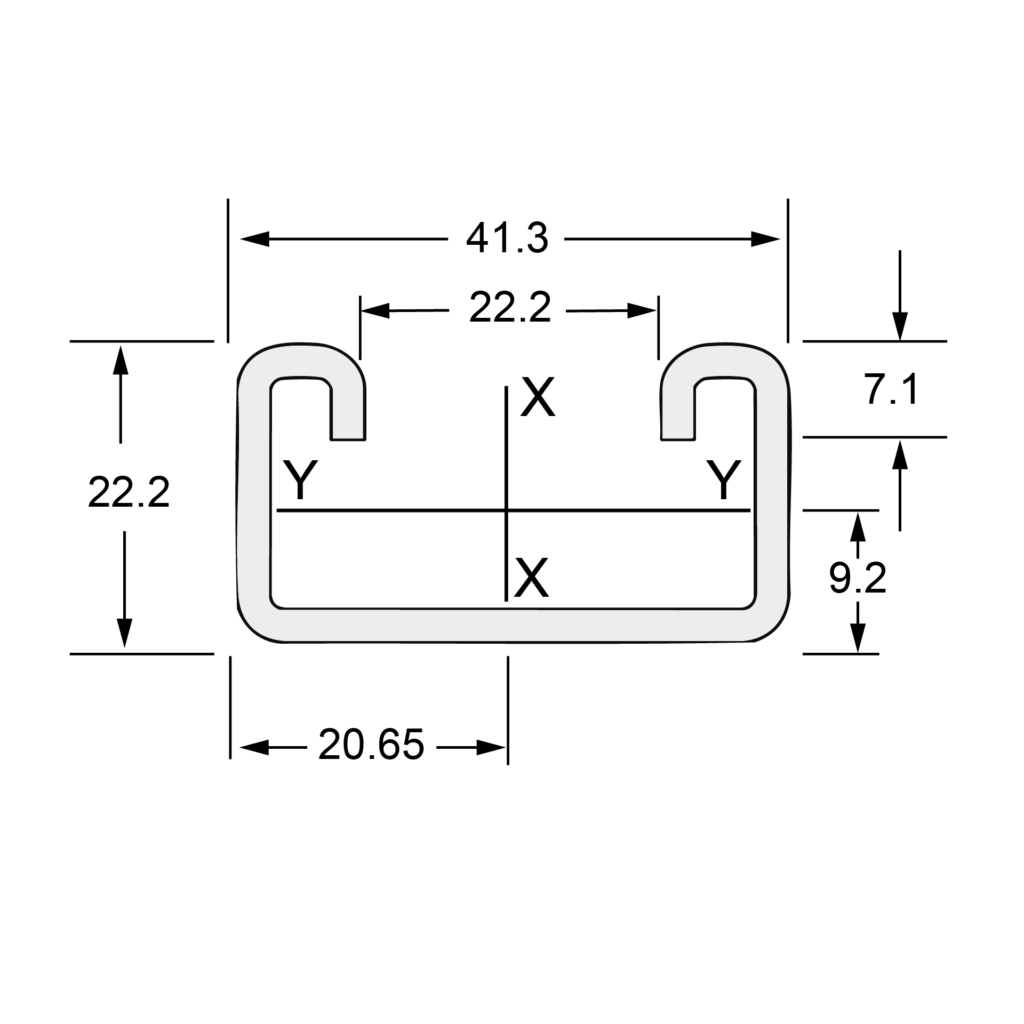

| AREA OF SECTION | WEIGHT | THICKNESS | MATERIAL |
|---|---|---|---|
| 237 mm² | 1.86 kg/m | 2.5 mm | 235 MPa (min yield stress) Mild Steel |
| Y-Y AXIS | X-X AXIS | ||
|---|---|---|---|
| Moment of Inertia [I 10⁶ mm⁴] | 0.014 | Moment of Inertia [I 10⁶ mm⁴] | 0.056 |
| Section Modulus [Z 10³ mm³] | 1.103 | Section Modulus [Z 10³ mm³] | 2.688 |
| Radius of gyration [r mm] | 7.8 | Radius of gyration [r mm] | 15.3 |
| SPAN [mm] | PART NO. | UDL LOAD [kg] | UDL DEFLECTION [mm] | POINT LOAD [kg] | POINT DEFLECTION [mm] | CONCENTRIC LOAD [kg] | ECCENTRIC LOAD [kg] |
|---|---|---|---|---|---|---|---|
| 250 | FM3300 | 537 | 0.37 | 287 | 0.32 | 4035 | 1022 |
| 500 | FM3300 | 287 | 1.6 | 146 | 1.3 | 3316 | 907 |
| 750 | FM3300 | 194 | 3.65 | 98 | 2.94 | 2334 | 750 |
| 1000 | FM3300 | 146 | 6.52 | 74 | 5.24 | 1435 | 584 |
| 1250 | FM3300 | 117 | 10.2 | 59 | 8.19 | 919 | 453 |
| 1500 | FM3300 | 97 | 14.53 | 48 | 11.63 | 638 | 357 |
| 1750 | FM3300 | 82 | 19.49 | 41 | 15.59 | 469 | 288 |
| 2000 | FM3300 | 71 | 25.16 | 35 | 20.13 | 359 | 236 |
| 2250 | FM3300 | 62 | 31.47 | 31 | 25.17 | 283 | 197 |
| 2500 | FM3300 | 55 | 38.4 | 28 | 30.72 | 230 | 167 |
| 2750 | FM3300 | 50 | 45.92 | 25 | 36.73 | 190 | 143 |
| 3000 | FM3300 | 45 | 53.99 | 22 | 43.19 | 160 | 124 |
