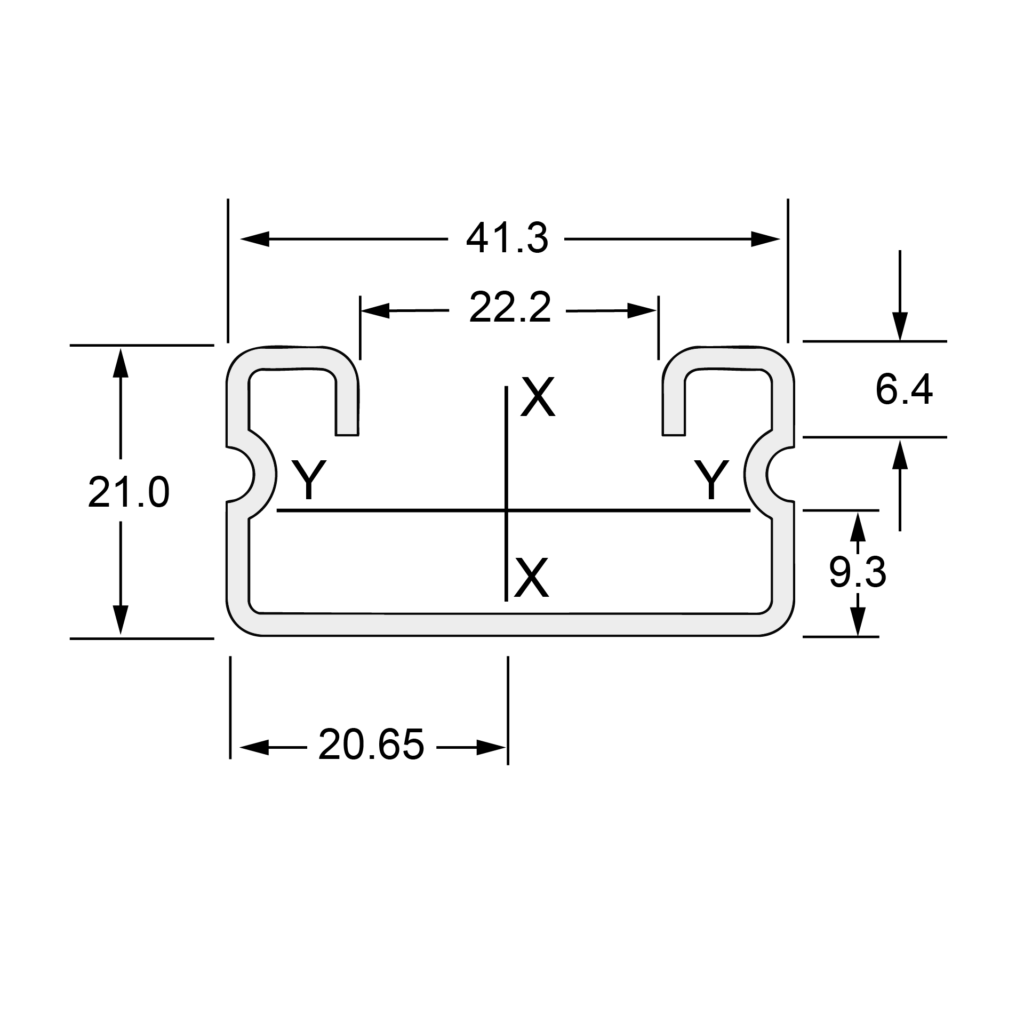

| AREA OF SECTION | WEIGHT | THICKNESS | MATERIAL |
|---|---|---|---|
|
141 mm² |
1.28 kg/m |
1.6 mm |
235 MPa (min yield stress) Mild Steel |
| Y-Y AXIS | X-X AXIS | ||
|---|---|---|---|
| Moment of Inertia [I 10⁶ mm⁴] | 0.011 | Moment of Inertia [I 10⁶ mm⁴] | 0.040 |
| Section Modulus [Z 10³ mm³] | 0.871 | Section Modulus [Z 10³ mm³] | 1.952 |
| Radius of gyration [r mm] | 8.3 | Radius of gyration [r mm] | 15.7 |
| SPAN [mm] | PART NO. | UDL LOAD [kg] | UDL DEFLECTION [mm] | POINT LOAD [kg] | POINT DEFLECTION [mm] | CONCENTRIC LOAD [kg] | ECCENTRIC LOAD [kg] |
|---|---|---|---|---|---|---|---|
| 250 | FM4000 | 403 | 0.36 | 215 | 0.31 | 2394 | 722 |
| 500 | FM4000 | 215 | 1.53 | 109 | 1.24 | 2060 | 650 |
| 750 | FM4000 | 145 | 3.48 | 73 | 2.8 | 1600 | 553 |
| 1000 | FM4000 | 105 | 5.97 | 52 | 4.77 | 1117 | 438 |
| 1250 | FM4000 | 80 | 8.89 | 40 | 7.11 | 719 | 336 |
| 1500 | FM4000 | 64 | 12.31 | 32 | 9.85 | 499 | 265 |
| 1750 | FM4000 | 53 | 16.09 | 26 | 12.88 | 367 | 213 |
| 2000 | FM4000 | 45 | 20.28 | 22 | 16.23 | 281 | 175 |
| 2250 | FM4000 | 38 | 24.88 | 19 | 19.91 | 222 | 146 |
| 2500 | FM4000 | 33 | 29.76 | 17 | 23.81 | 179 | 123 |
| 2750 | FM4000 | 30 | 35.07 | 15 | 28.06 | 149 | 106 |
| 3000 | FM4000 | 26 | 40.62 | 13 | 32.5 | 125 | 92 |
