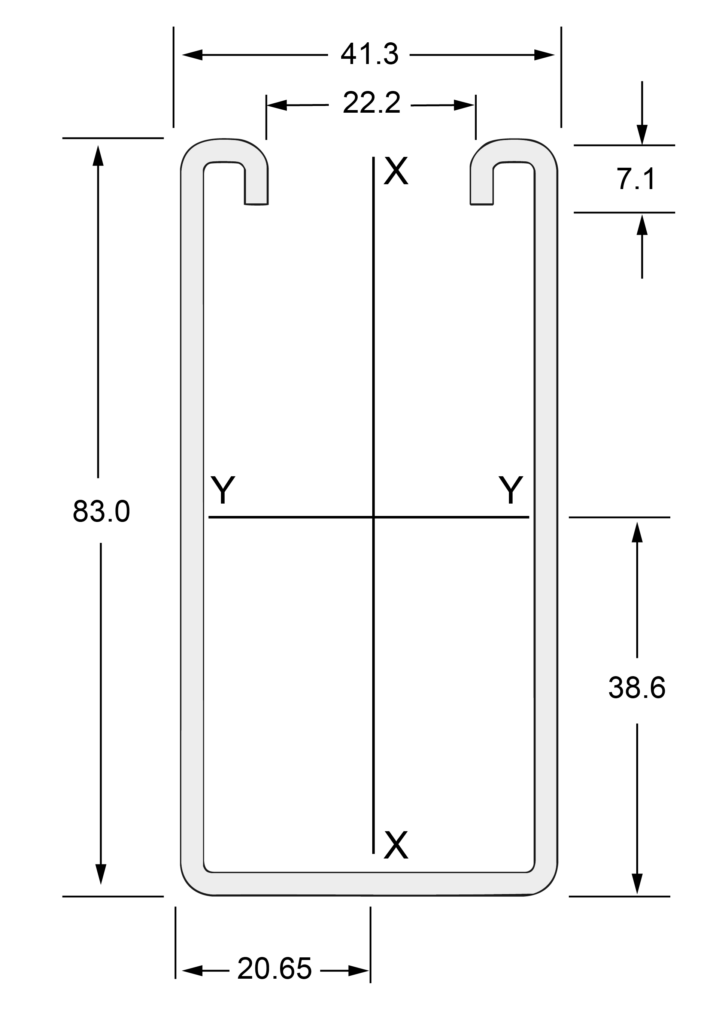

| AREA OF SECTION | WEIGHT | THICKNESS | MATERIAL |
|---|---|---|---|
| 506 mm² | 4.08 kg/m | 2.5 mm | 235 MPa (min yield stress) Mild Steel |
| Y-Y AXIS | X-X AXIS | ||
|---|---|---|---|
| Moment of Inertia [I 10⁶ mm⁴] | 0.378 | Moment of Inertia [I 10⁶ mm⁴] | 0.17 |
| Section Modulus [Z 10³ mm³] | 9.029 | Section Modulus [Z 10³ mm³] | 8.209 |
| Radius of gyration [r mm] | 27.3 | Radius of gyration [r mm] | 18.3 |
| SPAN [mm] | PART NO. | UDL LOAD [kg] | UDL DEFLECTION [mm] | POINT LOAD [kg] | POINT DEFLECTION [mm] | CONCENTRIC LOAD [kg] | ECCENTRIC LOAD [kg] |
|---|---|---|---|---|---|---|---|
| 250 | FM8300T | 2478 | 0.07 | 1364 | 0.06 | 3568 | 1467 |
| 500 | FM8300T | 1821 | 0.38 | 737 | 0.25 | 3568 | 1456 |
| 750 | FM8300T | 1439 | 1.03 | 493 | 0.56 | 3568 | 1439 |
| 1000 | FM8300T | 1032 | 1.74 | 370 | 1 | 2643 | 1248 |
| 1250 | FM8300T | 718 | 2.37 | 296 | 1.56 | 1822 | 1022 |
| 1500 | FM8300T | 506 | 2.89 | 247 | 2.25 | 1372 | 842 |
| 1750 | FM8300T | 358 | 3.24 | 179 | 2.6 | 1097 | 681 |
| 2000 | FM8300T | 266 | 3.59 | 133 | 2.87 | 915 | 571 |
| 2250 | FM8300T | 207 | 3.98 | 103 | 3.18 | 789 | 494 |
| 2500 | FM8300T | 167 | 4.4 | 83 | 3.52 | 694 | 437 |
| 2750 | FM8300T | 139 | 4.87 | 69 | 3.9 | 622 | 393 |
| 3000 | FM8300T | 118 | 5.37 | 59 | 4.29 | 564 | 359 |
