Browse part numbers, sizes and technical data
To view data turn phone to landscape

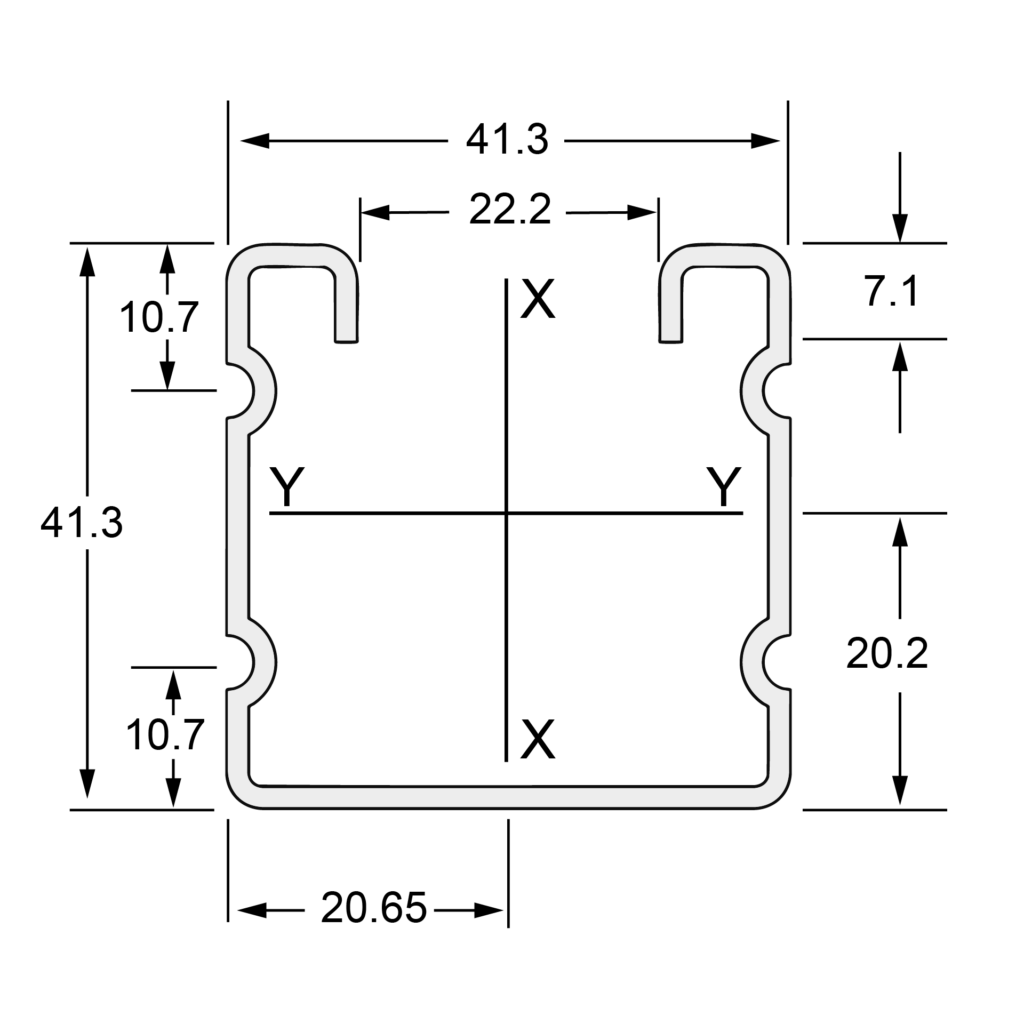

| AREA OF SECTION | WEIGHT | THICKNESS | MATERIAL |
|---|---|---|---|
| 202 mm² | 1.65 kg/m | 1.6 mm | 235 MPa (min yield stress) Mild Steel |
| Y-Y AXIS | X-X AXIS | ||
|---|---|---|---|
| Moment of Inertia [I 10⁶ mm⁴] | 0.044 | Moment of Inertia [I 10⁶ mm⁴] | 0.064 |
| Section Modulus [Z 10³ mm³] | 2.071 | Section Modulus [Z 10³ mm³] | 3.088 |
| Radius of gyration [r mm] | 14.7 | Radius of gyration [r mm] | 17.8 |
| SPAN [mm] | PART NO. | UDL LOAD [kg] | UDL DEFLECTION [mm] | POINT LOAD [kg] | POINT DEFLECTION [mm] | CONCENTRIC LOAD [kg] | ECCENTRIC LOAD [kg] |
|---|---|---|---|---|---|---|---|
| 250 | FM2000T | 790 | 0.18 | 508 | 0.19 | 2190 | 871 |
| 500 | FM2000T | 508 | 0.93 | 259 | 0.76 | 2190 | 861 |
| 750 | FM2000T | 344 | 2.12 | 173 | 1.7 | 1813 | 783 |
| 1000 | FM2000T | 239 | 3.49 | 119 | 2.79 | 1244 | 627 |
| 1250 | FM2000T | 174 | 4.96 | 87 | 3.97 | 860 | 486 |
| 1500 | FM2000T | 130 | 6.42 | 65 | 5.14 | 650 | 391 |
| 1750 | FM2000T | 99 | 7.77 | 50 | 6.21 | 521 | 324 |
| 2000 | FM2000T | 77 | 8.97 | 38 | 7.18 | 436 | 274 |
| 2250 | FM2000T | 60 | 10.02 | 30 | 8.02 | 374 | 236 |
| 2500 | FM2000T | 49 | 11.13 | 24 | 8.91 | 329 | 208 |
| 2750 | FM2000T | 41 | 12.33 | 20 | 9.86 | 294 | 185 |
| 3000 | FM2000T | 34 | 13.6 | 17 | 10.87 | 265 | 167 |
