Saddles

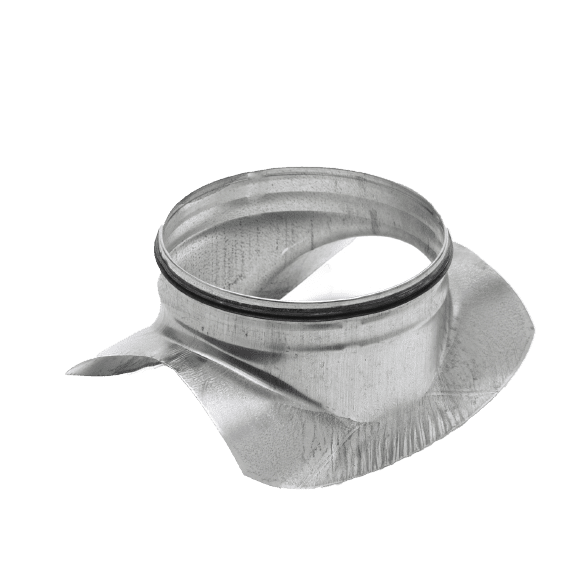

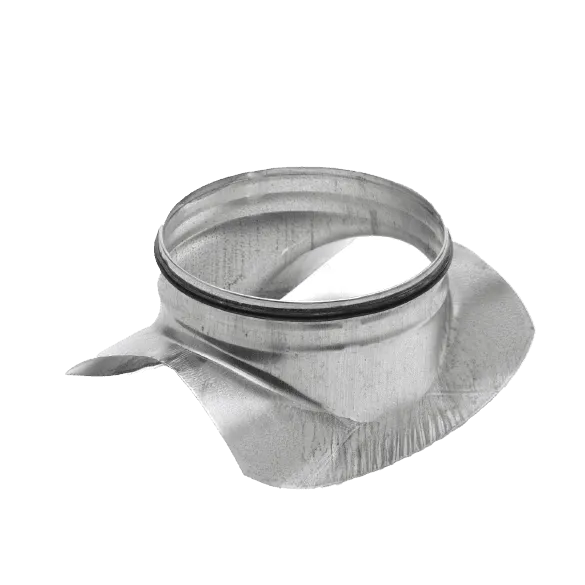

Pressed collar saddle is a 90° take-off fitting used to create a branch connection from a round Spiro main duct. It has:

a pressed collar (the round outlet for your branch),
a curved saddle shaped to sit on the outside of the main duct, and
a small overlap/lip that you fix to the duct with screws/rivets and sealant.

Part No. 'Select an option' Category Spiral Tube & Fittings

Size

Clear

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

reference image

PART NO.	d3 [mm]	d [mm]	l3 [mm]	lp3 [mm]	WEIGHT [kg]	BOX QTY	PALLET QTY
AS100-100S	100	100	65	35	0.13	80	480
AS100-150S	100	150 – 160	90 – 95	35	0.17	90	540
AS100-200S	100	180 – 200	105- 115	35	0.18	90	540
AS100-250S	100	224 – 250	126 – 140	35	0.17	90	540
AS100-350S	100	280 – 355	155 – 192	35	0.17	90	540
AS150-150S	150	150 – 160	90 – 95	35	0.32	25	150
AS150-200S	150	180 – 224	105 – 127	35	0.36	30	180
AS150-300S	150	250 – 315	140 – 172	35	0.4	35	210
AS150-600S	150	355 – 630	192 – 330	35	0.45	40	240
AS200-200S	200	200	118	35	0.49	32	128
AS200-250S	200	224 – 250	130 – 143	35	0.47	32	128
AS200-300S	200	280 – 315	158 – 175	35	0.53	32	128
AS200-400S	200	355 – 400	195 – 218	35	0.41	36	144
AS250-250S	250	250	146	45	0.77	24	96
AS250-300S	250	280 – 315	161 – 178	45	0.69	24	96
AS250-400S	250	355 – 400	198 – 221	45	0.65	24	96
AS250-550S	250	450 – 560	246 – 301	45	0.64	24	96
AS300-300S	300	300 – 315	171 – 178	45	1	50	50
AS300-400S	300	355 – 400	198 – 221	45	1	60	60
AS300-600S	300	450 – 630	246 – 336	45	1	50	50
