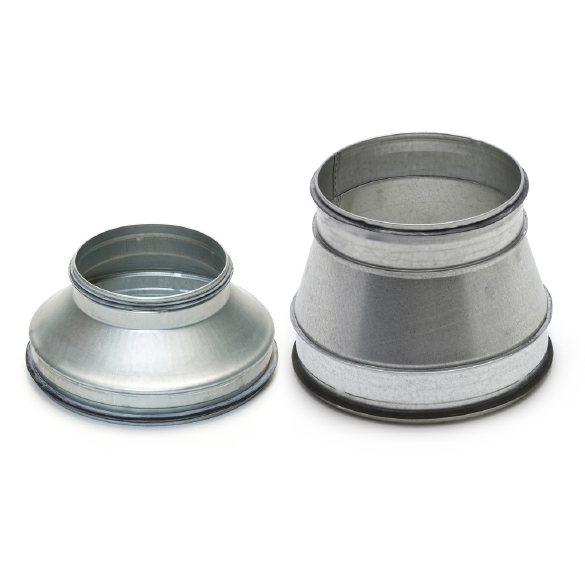

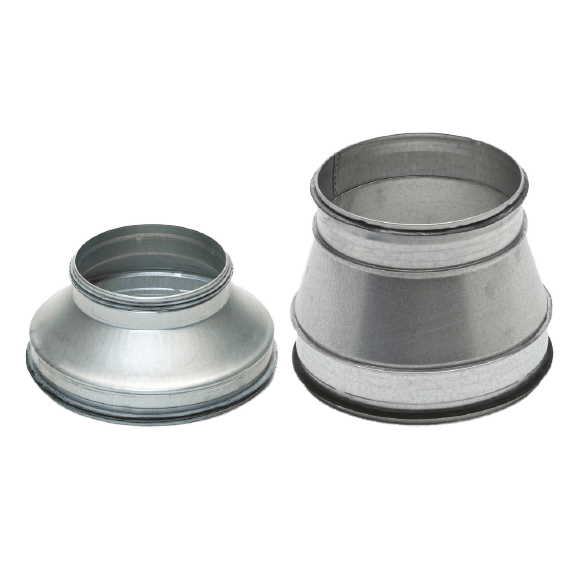

Reducers

Push-fit Reducer that connects Spiro-to-Spiro ends, enabling quick, tool-free reduction for duct runs.

Part No. 'Select an option' Category Spiral Tube & Fittings

Size

Clear

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

reference image

PART NO.	d1 [mm]	d2 [mm]	l [mm]	lp1 [mm]	lp2 [mm]	WEIGHT [kg]	BOX QTY	PALLET QTY
AS150-100R*	150	100	43	35	35	0.26	30	360
AS200-100R*	200	100	68	35	35	0.39	24	288
AS200-150R*	200	150	43	35	35	0.37	24	288
AS250-100R*	250	100	170	58	35	1	12	48
AS250-150R*	250	150	55	45	35	0.54	30	120
AS250-200R*	250	200	43	45	35	0.55	32	128
AS300-150R	300	150	236	58	48	1.2	7	42
AS300-200R*	300	200	68	45	35	0.67	24	96
AS300-250R*	300	250	43	45	45	0.66	26	104
AS350-200R	355	200	243	58	48	1.6	6	36
AS350-300R	355	300	106	58	58	1.2	8	48
AS400-200R	400	200	310	58	48	2.8	25	25
AS400-250R	400	250	241	58	58	2.5	6	36
AS400-300R	400	300	172	58	58	1.9	35	35
AS400-350R	400	355	97	58	58	1.8	40	40
AS450-200R	450	200	390	58	48	2.8	15	15
AS450-250R	450	250	310	58	58	2.6	15	15
AS450-300R	450	300	241	58	58	2.4	18	18
AS450-350R	450	355	166	58	58	2.1	21	21

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

PIPE CHART GUIDE

CLICK TO OPEN TABLES BELOW

STEEL PIPE SCHEDULE 40

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

STEEL PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

COPPER PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.1	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	50.8	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

DWV PVC PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

PRESSURE PVC PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05

HDPE PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	32	0.259	0.790
40	40	0.331	1.239
50	50	0.420	1.940
56	56	0.471	2.434
63	63	0.536	3.087
75	75	0.644	4.383
90	90	0.903	6.313
110	110	1.350	9.424
125	125	1.750	12.171
160	160	2.840	19.947
200	200	3.580	31.216
250	250	5.630	48.774
315	315	8.920	77.442

F.R.C PIPE

NOMINAL SIZE	PIPE O.D [mm]	CUTTER O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
225	269	257	22	61.74
300	346	336	35	105.70
375	427	415	51	161.39
450	512	504	67	225.96
535	594	584	86	310.89
600	678	664	111	393.60
675	752	733	133	490.66
750	802	783	157	598.80

CPVC PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
25	34	0.39	1.01
32	43	0.62	1.61
40	48	0.82	2.11
50	60	1.28	3.31

DICL PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
100	122 + 1, - 2	17	27.57
150	177 + 1, - 2	25	47.97
200	232 + 1, - 2	33	73.11
225	259 + 1, - 2	39	89.11
250	286 + 1, - 2	45	106.05
300	345 + 1, - 2	60	148.88
375	426 + 2	83	218.53
