SUITS STEEL PIPE

Light Duty Slide Guide & Ferrule | FM141

Name: Light Duty Slide Guide & Ferrule | FM141 - Flexistrut
Availability: InStock

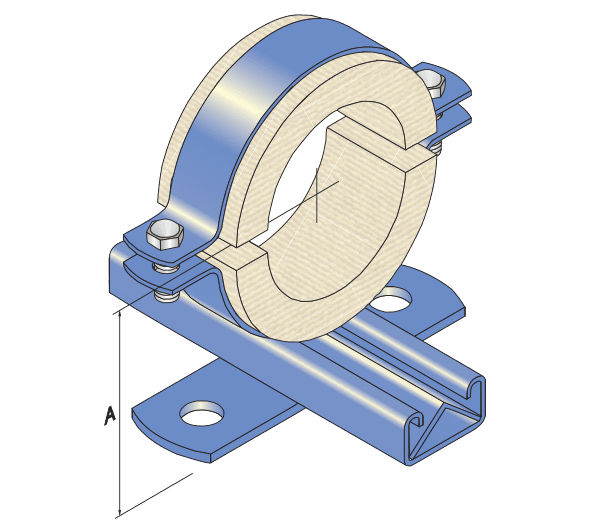

All stocked sizes are provided with a standard ‘A’ dimension.

Where required, the ‘A’ dimension can be custom manufactured with an increased value to suit individual on-site requirements.

Part No. 'Select an option' Category Slide Guides Tag Steel Pipe

Product Table

To view data turn phone to landscape

We are currently working to get all table data updated. If Table below appears empty, please reference our catalogues in the ‘DOWNLOADS’ tab.

Browse part numbers, sizes and technical data

PART NO.	PIPE DIA.	INS.	FERRULE DIA. [mm]	FERRULE WIDTH [mm]	‘A’ [mm]
FM141-015A	15nb	25	21 x 76	40	80
FM141-015B	15nb	38	21 x 102	40	94
FM141-015C	15nb	50	21 x 127	40	109
FM141-020A	20nb	25	27 x 76	40	80
FM141-020B	20nb	38	27 x 102	40	94
FM141-020C	20nb	50	27 x 127	40	109
FM141-025A	25nb	25	34 x 83	40	85
FM141-025B	25nb	38	34 x 115	40	101
FM141-025C	25nb	50	34 x 140	40	115
FM141-032A	32nb	25	43 x 89	40	88
FM141-032B	32nb	38	43 x 115	40	101
FM141-032C	32nb	50	43 x 140	40	115
FM141-040A	40nb	25	48 x 102	40	94
FM141-040B	40nb	38	48 x 127	40	109
FM141-040C	40nb	50	48 x 152	40	121
FM141-050A	50nb	25	60 x 115	40	101
FM141-050B	50nb	38	60 x 140	40	115
FM141-050C	50nb	50	60 x 165	40	128
FM141-050G	50nb	63	60 x 190	40	140
FM141-050H	50nb	75	60 x 203	40	147
FM141-065A	65nb	25	73 x 127	40	109
FM141-065B	65nb	38	73 x 152	40	121
FM141-065C	65nb	50	73 x 178	40	134
FM141-065G	65nb	63	73 x 203	40	147
FM141-065H	65nb	75	73 x 228	40	159
FM141-080A	80nb	25	89 x 140	40	115
FM141-080B	80nb	38	89 x 165	40	128
FM141-080C	80nb	50	89 x 190	40	140
FM141-080G	80nb	63	89 x 220	40	155
FM141-080H	80nb	75	89 x 240	40	165
FM141-100A	100nb	25	115 x 165	40	128
FM141-100B	100nb	38	115 x 190	40	140
FM141-100C	100nb	50	115 x 220	40	155
FM141-100G	100nb	63	115 x 240	40	165
FM141-100H	100nb	75	115 x 268	40	179
