SUITS COPPER PIPE

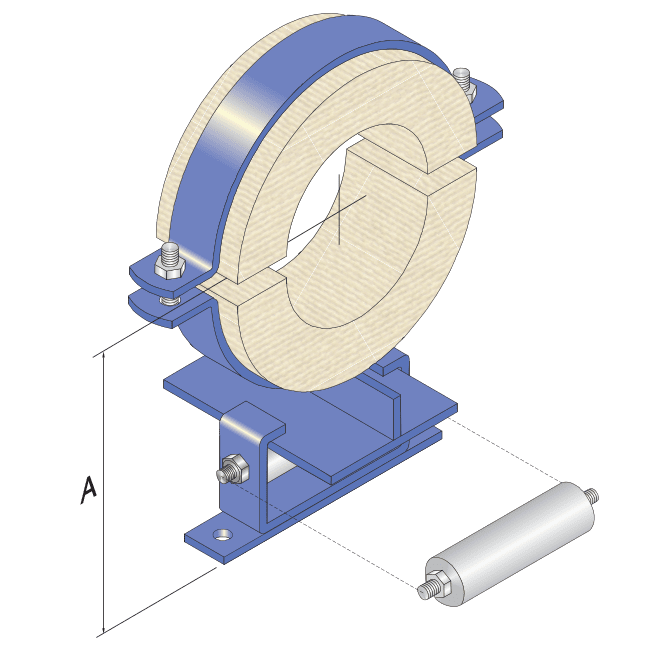

Light Duty Roller Guide & Ferrule | FM147

Part No. 'Select an option' Category Roller Guides Tag Copper Pipe

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

PART NO. [HDG]	PIPE DIA.	INS.	FERRULE DIMENSIONS [I.D x O.D]	FERRULE WIDTH	‘A’ [mm]
FM147-015D	15cu	25	13 x 65	40	110
FM147-015E	15cu	38	13 x 89	40	123
FM147-015F	15cu	50	13 x 115	40	136
FM147-020D	20cu	25	19 x 70	40	114
FM147-020E	20cu	38	19 x 102	40	129
FM147-020F	20cu	50	19 x 127	40	144
FM147-025D	25cu	25	25 x 76	40	116
FM147-025E	25cu	38	25 x 102	40	129
FM147-025F	25cu	50	25 x 127	40	144
FM147-032D	32cu	25	32 x 83	40	120
FM147-032E	32cu	38	32 x 115	40	136
FM147-032F	32cu	50	32 x 140	40	150
FM147-040D	40cu	25	38 x 89	40	123
FM147-040E	40cu	38	38 x 115	40	136
FM147-040F	40cu	50	38 x 140	40	150
FM147-050D	50cu	25	51 x 102	40	129
FM147-050E	50cu	38	51 x 127	40	144
FM147-050F	50cu	50	51 x 152	40	156
FM147-050J	50cu	63	51 x 178	40	169
FM147-050K	50cu	75	51 x 203	40	181
FM147-065D	65cu	25	65 x 115	40	136
FM147-065E	65cu	38	65 x 140	40	150
FM147-065F	65cu	50	65 x 165	40	163
FM147-065J	65cu	63	65 x 190	40	175
FM147-065K	65cu	75	65 x 220	40	190
FM147-080D	80cu	25	76 x 127	40	144
FM147-080E	80cu	38	76 x 152	40	156
FM147-080F	80cu	50	76 x 178	40	169
FM147-080J	80cu	63	76 x 203	40	181
FM147-080K	80cu	75	76 x 228	40	194
FM147-100D	100cu	25	102 x 152	40	156
FM147-100E	100cu	38	102 x 178	40	169
FM147-100F	100cu	50	102 x 203	40	181
FM147-100J	100cu	63	102 x 228	40	194
FM147-100K	100cu	75	102 x 252	40	206

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.1	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	50.8	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05
