Light Duty Floor Mounted Riser Guide & Ferrule | FM189

SUITS STEEL PIPE

Light Duty Floor Mounted Riser Guide & Ferrule | FM189

Part No. 'Select an option' Category Riser Guides Tag Steel Pipe

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

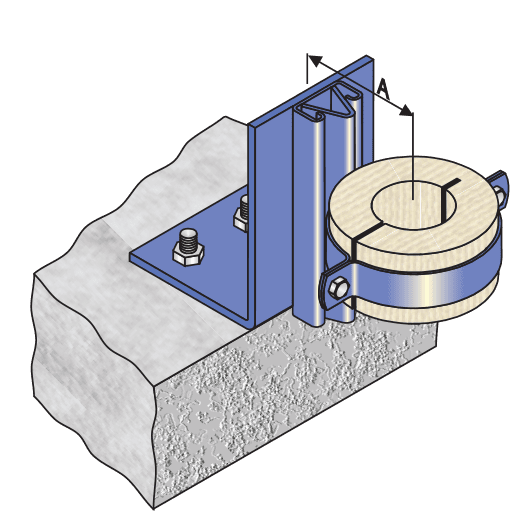

‘A’ DIMENSION IS A MINIMUM, CAN BE INCREASED TO SUIT INDIVIDUAL ON-SITE REQUIREMENTS

NOTE: PIPE SIZES UP TO 100NB ARE SHOWN AS ABOVE. FOR LARGER SIZES OR OTHER SPECIAL ON-SITE REQUIREMENTS, CONSULT YOUR NEAREST FLEXISTRUT BRANCH.

PART NO. [HDG]	PIPE DIA.	INS.	FERRULE DIMENSIONS [I.D x O.D]	FERRULE WIDTH	‘A’ [mm]
FM189-015A	15nb	25	21 x 76	40	80
FM189-015B	15nb	38	21 x 102	40	94
FM189-015C	15nb	50	21 x 127	40	109
FM189-020A	20nb	25	27 x 76	40	80
FM189-020B	20nb	38	27 x 102	40	94
FM189-020C	20nb	50	27 x 127	40	109
FM189-025A	25nb	25	34 x 83	40	85
FM189-025B	25nb	38	34 x 115	40	101
FM189-025C	25nb	50	34 x 140	40	115
FM189-032A	32nb	25	43 x 89	40	88
FM189-032B	32nb	38	43 x 115	40	101
FM189-032C	32nb	50	43 x 140	40	115
FM189-040A	40nb	25	48 x 102	40	94
FM189-040B	40nb	38	48 x 127	40	109
FM189-040C	40nb	50	48 x 152	40	121
FM189-050A	50nb	25	60 x 115	40	101
FM189-050B	50nb	38	60 x 140	40	115
FM189-050C	50nb	50	60 x 165	40	128
FM189-050G	50nb	63	60 x 190	40	140
FM189-050H	50nb	75	60 x 203	40	147
FM189-065A	65nb	25	73 x 127	40	109
FM189-065B	65nb	38	73 x 152	40	121
FM189-065C	65nb	50	73 x 178	40	134
FM189-065G	65nb	63	73 x 203	40	147
FM189-065H	65nb	75	73 x 228	40	159
FM189-080A	80nb	25	89 x 140	40	115
FM189-080B	80nb	38	89 x 165	40	128
FM189-080C	80nb	50	89 x 190	40	140
FM189-080G	80nb	63	89 x 220	40	155
FM189-080H	80nb	75	89 x 240	40	165
FM189-100A	100nb	25	115 x 165	40	128
FM189-100B	100nb	38	115 x 190	40	140
FM189-100C	100nb	50	115 x 220	40	155
FM189-100G	100nb	63	115 x 240	40	165
FM189-100H	100nb	75	115 x 268	40	179

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.0	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	51.2	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05

Light Duty Floor Mounted Riser Guide & Ferrule | FM189

Product Table

PIPE

CHART GUIDE

ENGINEERING CATALOGUE 9.3

CONSUMABLES CATALOGUE 3.1

SUPA
CATALOGUE 4.5

Related Products

Something looks off
or need more detail?

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	32	0.259	0.790
40	40	0.331	1.239
50	50	0.420	1.940
56	56	0.471	2.434
63	63	0.536	3.087
75	75	0.644	4.383
90	90	0.903	6.313
110	110	1.350	9.424
125	125	1.750	12.171
160	160	2.840	19.947
200	200	3.580	31.216
250	250	5.630	48.774
315	315	8.920	77.442

NOMINAL SIZE	PIPE O.D [mm]	CUTTER O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
225	269	257	22	61.74
300	346	336	35	105.70
375	427	415	51	161.39
450	512	504	67	225.96
535	594	584	86	310.89
600	678	664	111	393.60
675	752	733	133	490.66
750	802	783	157	598.80
