SUITS STEEL PIPE

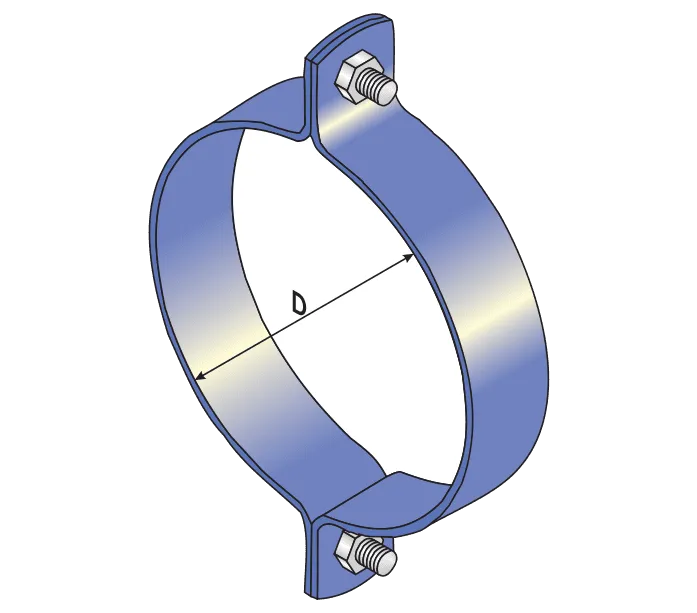

Light Duty Double Bolted Clamp | FM6

316 Grade Stainless Steel available on request

Part No. 'Select an option' Category Double Bolted Clamps Tag Steel Pipe

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

PART NO. [HDG]	PIPE DIA.	D	BOLT	MATERIAL [W x T]	HOLE CENTRES [mm]	BOX QTY
FM6-015	15cu	12.7	M6 x 25	20 x 3	40	50
FM6-020	20cu	19	M6 x 25	20 x 3	49	50
FM6-021	15nb	21	M6 x 25	20 x 3	49	50
FM6-025	25cu	25	M6 x 25	20 x 3	55	50
FM6-027	20nb	27	M6 x 25	20 x 3	55	50
FM6-032	32cu	32	M6 x 25	20 x 3	64	50
FM6-034	25nb	34	M6 x 25	20 x 3	64	50
FM6-038	40cu	38	M6 x 25	20 x 3	68	25
FM6-043	32nb	43	M6 x 25	20 x 3	73	25
FM6-048	40nb	48	M6 x 25	20 x 3	78	25
FM6-051	50cu	51	M6 x 25	20 x 3	81	25
FM6-060	50nb	60	M6 x 25	20 x 3	90	25
FM6-064	65cu	64	M6 x 25	20 x 3	95	25
FM6-076	80cu	76	M6 x 25	20 x 3	106	25
FM6-083	83ns	83	M6 x 25	20 x 3	113	20
FM6-089	80nb	89	M6 x 25	20 x 3	119	20
FM6-102	100cu	102	M6 x 25	20 x 3	132	20
FM6-115	100nb	115	M6 x 25	25 x 5	155	20
FM6-127	125cu	127	M8 x 30	25 x 5	167	10
FM6-140	125nb	140	M8 x 30	25 x 5	180	10
FM6-152	150cu	152	M8 x 30	25 x 5	192	10
FM6-168	150nb	168	M8 x 30	25 x 5	208	10
FM6-178	178ns	178	M8 x 30	25 x 5	215	10
FM6-190	190ns	190	M8 x 30	25 x 5	230	10
FM6-203	200cu	204	M8 x 30	25 x 5	243	10
FM6-220	200nb	220	M8 x 30	25 x 5	260	10
FM6-228	228ns	228	M8 x 30	25 x 5	268	10
FM6-240	240ns	240	M8 x 30	25 x 5	280	10
FM6-252	252ns	252	M8 x 30	25 x 5	290	10

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.1	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	50.8	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05

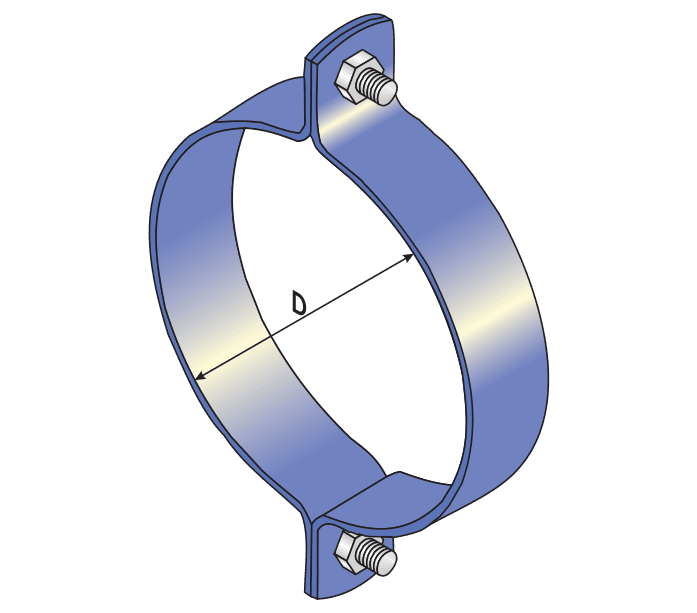

Light Duty Double Bolted Clamp | FM6
