Browse part numbers, sizes and technical data
| PART NO. [HDG] | SUITS PROFILE | REQ. BOLT | NO. BOLTS | BOX QTY |
|---|---|---|---|---|

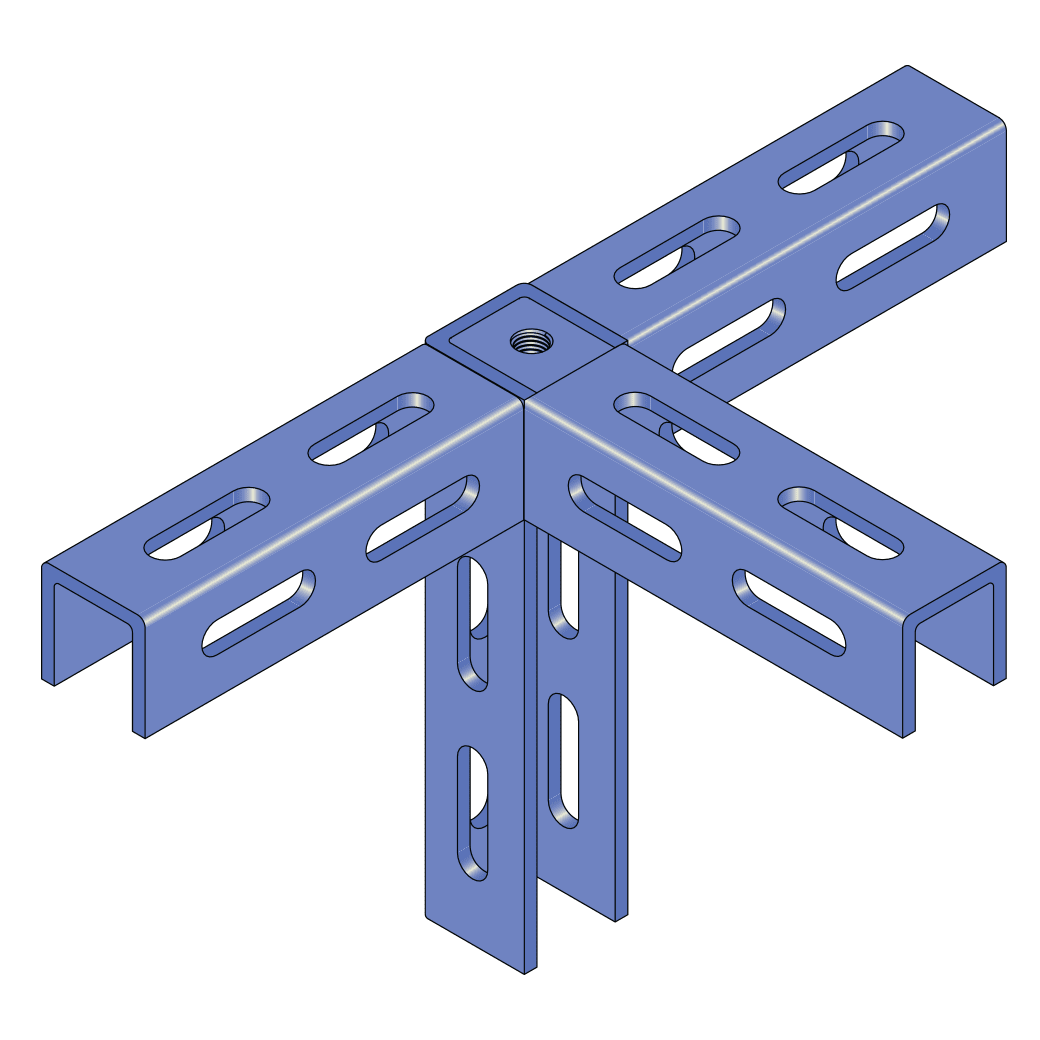

| SP50-4WB | SUPA50 | SPBOLT-S45-M10 | 16 | 1 |

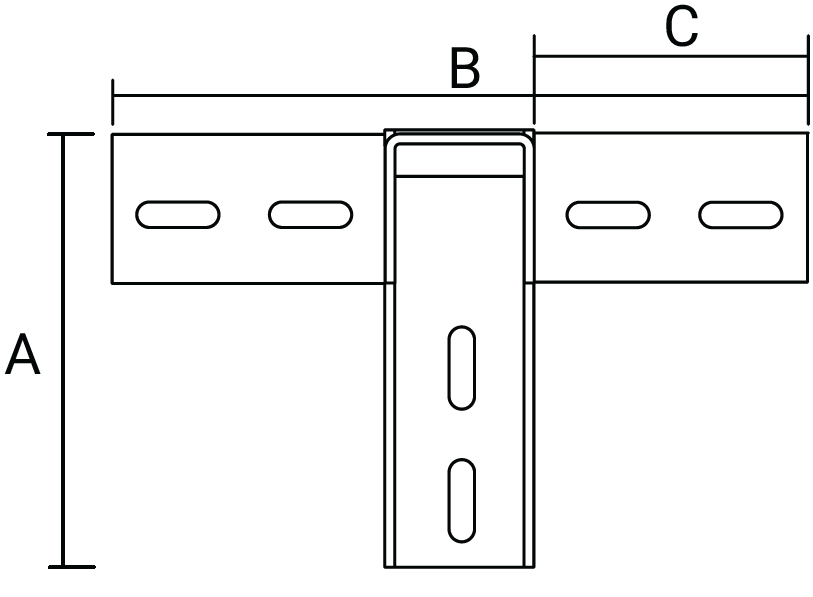

| PART NO. | ‘A’ [mm] | ‘B’ [mm] | ‘C’ [mm] | THREAD [mm] | MATERIAL [mm] | SLOTS [W x H] |
|---|---|---|---|---|---|---|
| SP50-4WB | 200 | 350 | 150 | M12 | 5 | 12 x 40 |
