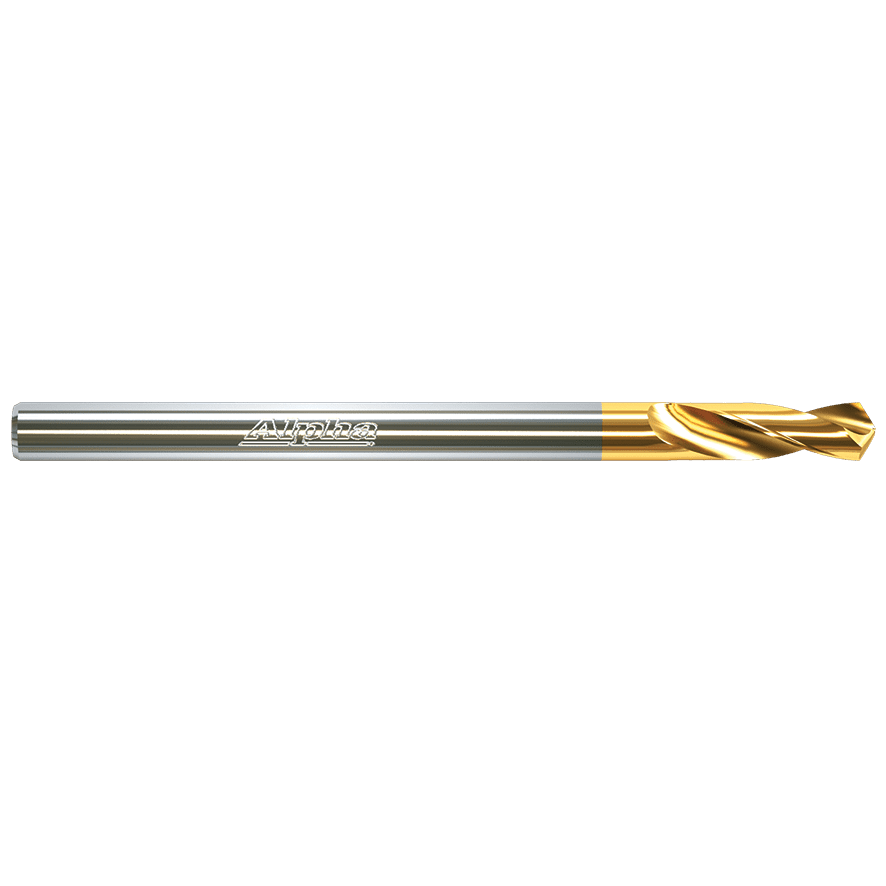

Imperial Stub High Speed Steel Drill Bits

Fully ground M2 high speed steel drill bits in imperial sizing

Titanium Nitride coating reduces heat whilst drilling

135° Split point for faster cutting

Part No. 'Select an option' Drill Bits & Accessories, High Speed Drill Bits

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

PART NO.	DRILL DIAMETER [mm]	OVERALL LENGTH [mm]	DRILL DEPTH [mm]	BOX QTY
HSS-3/16STUB	4.76	54	27	10
HSS-1/4STUB	6.35	64	34	10
HSS-5/16STUB	7.94	71	41	5
HSS-3/8STUB	9.53	79	46	5
HSS-13/32STUB	10.32	84	49	5
HSS-1/2STUB	12.7	95	57	5
