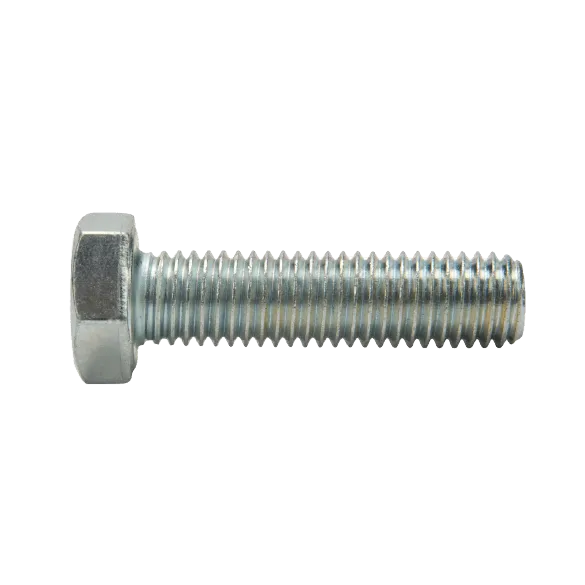

Hex Head Set Screw

Set screws are full thread bolts featuring a hex head

Part No. 'Select an option' Category Bolts

Size

Length

Finish

Clear

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

SIZE	LENGTH [mm]	PART NO. [ZINC]	BOX QTY	PART NO. [HDG]	BOX QTY	PART NO. [S/S]	BOX QTY
M6	10	HHSSM6x10	200			SSHHSSM6x10	100
M6	12	HHSSM6x12	200			SSHHSSM6x12	100
M6	16	HHSSM6x16	200			SSHHSSM6x16	100
M6	20	HHSSM6x20	200	HHSSM6x20HDG	200	SSHHSSM6x20	100
M6	25	HHSSM6x25	200	HHSSM6x25HDG	200	SSHHSSM6x25	100
M6	30	HHSSM6x30	200	HHSSM6x30HDG	200	SSHHSSM6x30	100
M6	35	HHSSM6x35	200			SSHHSSM6x35	100
M6	40	HHSSM6x40	200			SSHHSSM6x40	100
M6	45	HHSSM6x45	200			SSHHSSM6x45	100
M6	50	HHSSM6x50	200			SSHHSSM6x50	100
M6	55					SSHHSSM6x55	50
M6	60	HHSSM6x60	150			SSHHSSM6x60	50
M6	65	HHSSM6x65	150			SSHHSSM6x65	50
M6	70					SSHHSSM6x70	50
M6	75	HHSSM6x75	150			SSHHSSM6x75	50
M6	80					SSHHSSM6x80	50
M6	90					SSHHSSM6x90	50
M6	100					SSHHSSM6x100	50
M8	12	HHSSM8x12	200			SSHHSSM8x12	100
M8	16	HHSSM8x16	200			SSHHSSM8x16	100
M8	20	HHSSM8x20	200	HHSSM8x20HDG	200	SSHHSSM8x20	100
M8	25	HHSSM8x25	200	HHSSM8x25HDG	200	SSHHSSM8x25	100
M8	30	HHSSM8x30	200	HHSSM8x30HDG	200	SSHHSSM8x30	100
M8	35	HHSSM8x35	200			SSHHSSM8x35	100
M8	40	HHSSM8x40	200	HHSSM8x40HDG	200	SSHHSSM8x40	100
M8	45	HHSSM8x45	200			SSHHSSM8x45	100
M8	50	HHSSM8x50	200			SSHHSSM8x50	100
M8	55					SSHHSSM8x55	50
M8	60	HHSSM8x60	150			SSHHSSM8x60	50
M8	65	HHSSM8x65	150			SSHHSSM8x65	50
M8	70					SSHHSSM8x70	50
M8	75	HHSSM8x75	150			SSHHSSM8x75	50
M8	80					SSHHSSM8x80	50
M8	90					SSHHSSM8x90	50
M8	100	HHSSM8x100	150			SSHHSSM8x100	50
M10	12	HHSSM10x12	150
M10	16	HHSSM10x16	150			SSHHSSM10x16	100
M10	20	HHSSM10x20	150			SSHHSSM10x20	100
M10	25	HHSSM10x25	150	HHSSM10x25HDG	150	SSHHSSM10x25	100
M10	30	HHSSM10x30	150	HHSSM10x30HDG	150	SSHHSSM10x30	100
M10	35	HHSSM10x35	150	HHSSM10x35HDG	150	SSHHSSM10x35	100
M10	40	HHSSM10x40	150	HHSSM10x40HDG	150	SSHHSSM10x40	100
M10	45	HHSSM10x45	75			SSHHSSM10x45	100
M10	50	HHSSM10x50	75	HHSSM10x50HDG	75	SSHHSSM10x50	100
M10	55					SSHHSSM10x55	50
M10	60	HHSSM10x60	75			SSHHSSM10x60	50
M10	65	HHSSM10x65	75			SSHHSSM10x65	50
M10	70					SSHHSSM10x70	50
M10	75	HHSSM10x75	75	HHSSM10x75HDG	75	SSHHSSM10x75	50
M10	80					SSHHSSM10x80	50
M10	90	HHSSM10x90	50			SSHHSSM10x90	50
M10	100	HHSSM10x100	50	HHSSM10x100HDG	50	SSHHSSM10x100	50
M12	20	HHSSM12x20	100			SSHHSSM12x20	100
M12	25	HHSSM12x25	100	HHSSM12x25HDG	100	SSHHSSM12x25	100
M12	30	HHSSM12x30	100	HHSSM12x30HDG	100	SSHHSSM12x30	100
M12	35	HHSSM12x35	100			SSHHSSM12x35	100
M12	40	HHSSM12x40	100	HHSSM12x40HDG	100	SSHHSSM12x40	50
M12	45					SSHHSSM12x45	50
M12	50	HHSSM12x50	75	HHSSM12x50HDG	75	SSHHSSM12x50	50
M12	55					SSHHSSM12x55	25
M12	60	HHSSM12x60	75	HHSSM12x60HDG	75	SSHHSSM12x60	25
M12	65	HHSSM12x65	75	HHSSM12x65HDG	75	SSHHSSM12x65	25
M12	70					SSHHSSM12x70	25
M12	75	HHSSM12x75	75	HHSSM12x75HDG	75	SSHHSSM12x75	25
M12	80					SSHHSSM12x80	25
M12	90	HHSSM12x90	50			SSHHSSM12x90	25
M12	100	HHSSM12x100	50	HHSSM12x100HDG	50	SSHHSSM12x100	25
M16	25					SSHHSSM16x25	25
M16	30	HHSSM16x30	50			SSHHSSM16x30	25
M16	35			HHSSM16x35HDG	50	SSHHSSM16x35	25
M16	40	HHSSM16x40	50	HHSSM16x40HDG	50	SSHHSSM16x40	25
M16	45					SSHHSSM16x45	25
M16	50	HHSSM16x50	50	HHSSM16x50HDG	50	SSHHSSM16x50	25
M16	55					SSHHSSM16x55	25
M16	60	HHSSM16x60	50	HHSSM16x60HDG	50	SSHHSSM16x60	25
M16	65			HHSSM16x65HDG	50	SSHHSSM16x65	25
M16	70					SSHHSSM16x70	25
M16	75	HHSSM16x75	25	HHSSM16x75HDG	25	SSHHSSM16x75	25
M16	80					SSHHSSM16x80	25
M16	90	HHSSM16x90	25	HHSSM16x90HDG	25	SSHHSSM16x90	25
M16	100	HHSSM16x100	25	HHSSM16x100HDG	25	SSHHSSM16x100	25
M20	40	HHSSM20x40	25	HHSSM20x40HDG	25	SSHHSSM20x40	25
M20	45			HHSSM20x45HDG	25	SSHHSSM20x45	25
M20	50	HHSSM20x50	25	HHSSM20x50HDG	25	SSHHSSM20x50	25
M20	55	HHSSM20x55	20			SSHHSSM20x55	25
M20	60	HHSSM20x60	20	HHSSM20x60HDG	20	SSHHSSM20x60	25
M20	65			HHSSM20x65HDG	20	SSHHSSM20x65	25
M20	70					SSHHSSM20x70	25
M20	75	HHSSM20x75	20	HHSSM20x75HDG	20	SSHHSSM20x75	20
M20	80					SSHHSSM20x80	20
M20	90			HHSSM20x90HDG	20	SSHHSSM20x90	10
M20	100	HHSSM20x100	20	HHSSM20x100HDG	20	SSHHSSM20x100	10
M20	110					SSHHSSM20x110	10
M20	120					SSHHSSM20x120	10
M20	130	HHSSM20x130	10	HHSSM20x130HDG	10	SSHHSSM20x130	10
M20	140					SSHHSSM20x140	10
M20	150	HHSSM20x150	10	HHSSM20x150HDG	10	SSHHSSM20x150	10

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.1	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	50.8	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05

Hex Head Set Screw

Product Table

PIPE

CHART GUIDE

ENGINEERING
CATALOGUE 9.4

CONSUMABLES
CATALOGUE 3.1

SUPA
CATALOGUE 4.5

Related Products

Something looks off
or need more detail?

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	32	0.259	0.790
40	40	0.331	1.239
50	50	0.420	1.940
56	56	0.471	2.434
63	63	0.536	3.087
75	75	0.644	4.383
90	90	0.903	6.313
110	110	1.350	9.424
125	125	1.750	12.171
160	160	2.840	19.947
200	200	3.580	31.216
250	250	5.630	48.774
315	315	8.920	77.442

NOMINAL SIZE	PIPE O.D [mm]	CUTTER O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
225	269	257	22	61.74
300	346	336	35	105.70
375	427	415	51	161.39
450	512	504	67	225.96
535	594	584	86	310.89
600	678	664	111	393.60
675	752	733	133	490.66
750	802	783	157	598.80
