SUITS STEEL PIPE

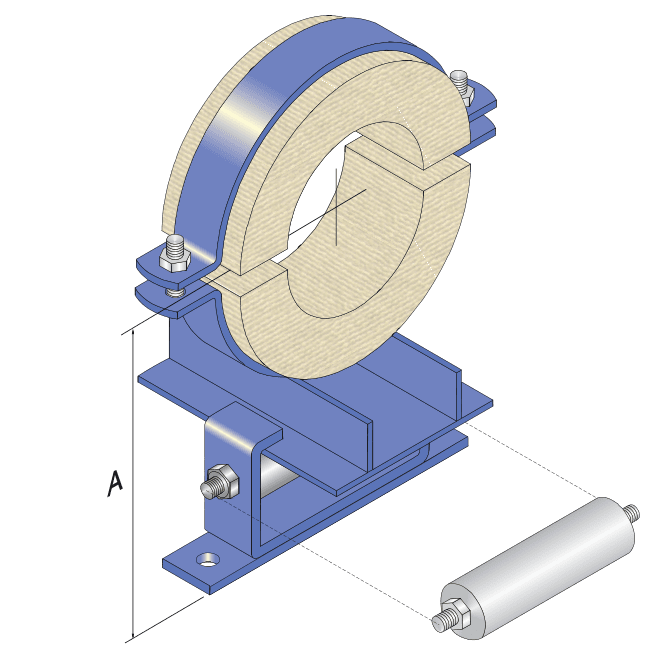

Heavy Duty Roller Guide & Ferrule | FM149

Part No. 'Select an option' Category Roller Guides Tag Steel Pipe

Pipe Dia.

Insulation

Clear

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

PART NO. [HDG]	PIPE DIA	INS.	FERRULE DIMENSIONS [I.D x O.D]	FERRULE WIDTH	‘A’ [mm]
FM149-125A	125nb	25	140 x 190	40	195
FM149-125B	125nb	38	140 x 220	40	210
FM149-125C	125nb	50	140 x 240	40	220
FM149-125G	125nb	63	140 x 268	40	235
FM149-125H	125nb	75	140 x 300	40	251
FM149-150A	150nb	25	168 x 220	40	210
FM149-150B	150nb	38	168 x 240	40	220
FM149-150C	150nb	50	168 x 268	40	235
FM149-150G	150nb	63	168 x 300	40	251
FM149-150H	150nb	75	168 x 324	40	263
FM149-200A	200nb	25	220 x 275	40	238
FM149-200B	200nb	38	220 x 300	40	251
FM149-200C	200nb	50	220 x 324	40	263
FM149-200G	200nb	63	220 x 355	40	279
FM149-200H	200nb	75	220 x 375	40	289
FM149-250A	250nb	25	273 x 324	80	263
FM149-250B	250nb	38	273 x 356	80	279
FM149-250C	250nb	50	273 x 375	80	289
FM149-250G	250nb	63	273 x 406	80	304
FM149-250H	250nb	75	273 x 424	80	313
FM149-300A	300nb	25	324 x 375	80	289
FM149-300B	300nb	38	324 x 406	80	308
FM149-300C	300nb	50	324 x 424	80	317
FM149-300G	300nb	63	324 x 456	80	333
FM149-300H	300nb	75	324 x 475	80	342
FM149-350A	350nb	25	355 x 406	80	308
FM149-350B	350nb	38	355 x 424	80	317
FM149-350C	350nb	50	355 x 457	80	334
FM149-350G	350nb	63	355 x 486	80	348
FM149-350H	350nb	75	355 x 508	80	359
FM149-400A	400nb	25	406 x 457	80	334
FM149-400B	400nb	38	406 x 486	80	345
FM149-400C	400nb	50	406 x 508	80	359
FM149-400G	400nb	63	406 x 536	80	373
FM149-400H	400nb	75	406 x 557	80	384
FM149-450A	450nb	25	457 x 508	80	359
FM149-450B	450nb	38	457 x 536	80	372
FM149-450C	450nb	50	457 x 557	80	384
FM149-450G	450nb	63	457 x 587	80	396
FM149-450H	450nb	75	457 x 608	80	416

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.1	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	50.8	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05

Heavy Duty Roller Guide & Ferrule | FM149

Product Table

PIPE

CHART GUIDE

ENGINEERING
CATALOGUE 9.4

CONSUMABLES
CATALOGUE 3.1

SUPA
CATALOGUE 4.5

Related Products

Something looks off
or need more detail?

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	32	0.259	0.790
40	40	0.331	1.239
50	50	0.420	1.940
56	56	0.471	2.434
63	63	0.536	3.087
75	75	0.644	4.383
90	90	0.903	6.313
110	110	1.350	9.424
125	125	1.750	12.171
160	160	2.840	19.947
200	200	3.580	31.216
250	250	5.630	48.774
315	315	8.920	77.442

NOMINAL SIZE	PIPE O.D [mm]	CUTTER O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
225	269	257	22	61.74
300	346	336	35	105.70
375	427	415	51	161.39
450	512	504	67	225.96
535	594	584	86	310.89
600	678	664	111	393.60
675	752	733	133	490.66
750	802	783	157	598.80
