SUITS STEEL PIPE

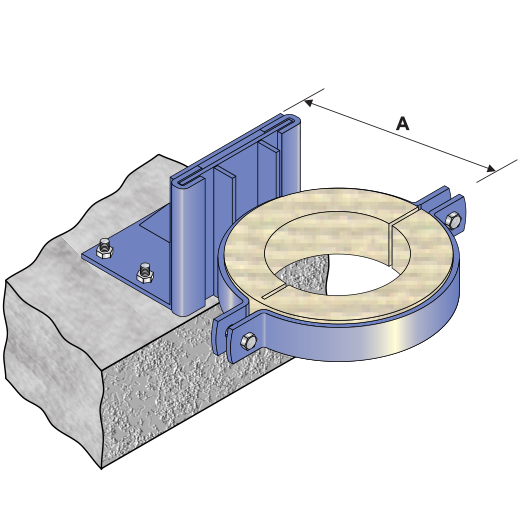

Heavy Duty Floor Mounted Riser Guide & Ferrule | FM189-142

Part No. 'Select an option' Category Riser Guides Tag Steel Pipe

Pipe Dia.

Insulation

Clear

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

PART NO. [HDG]	PIPE DIA.	INS.	FERRULE DIMENSIONS [I.D x O.D]	FERRULE WIDTH	‘A’ [mm]
FM189-142-015A	15nb	25	21 x 76	40	96
FM189-142-015B	15nb	38	21 x 102	40	109
FM189-142-015C	15nb	50	21 x 127	40	121
FM189-142-020A	20nb	25	27 x 76	40	96
FM189-142-020B	20nb	38	27 x 102	40	109
FM189-142-020C	20nb	50	27 x 127	40	121
FM189-142-025A	25nb	25	34 x 83	40	99
FM189-142-025B	25nb	38	34 x 115	40	115
FM189-142-025C	25nb	50	34 x 140	40	128
FM189-142-032A	32nb	25	43 x 89	40	102
FM189-142-032B	32nb	38	43 x 115	40	115
FM189-142-032C	32nb	50	43 x 140	40	128
FM189-142-040A	40nb	25	48 x 102	40	109
FM189-142-040B	40nb	38	48 x 127	40	121
FM189-142-040C	40nb	50	48 x 152	40	134
FM189-142-050A	50nb	25	60 x 115	40	115
FM189-142-050B	50nb	38	60 x 140	40	128
FM189-142-050C	50nb	50	60 x 165	40	141
FM189-142-050G	50nb	63	60 x 190	40	153
FM189-142-050H	50nb	75	60 x 203	40	160
FM189-142-065A	65nb	25	73 x 127	40	121
FM189-142-065B	65nb	38	73 x 152	40	134
FM189-142-065C	65nb	50	73 x 178	40	147
FM189-142-065G	65nb	63	73 x 203	40	160
FM189-142-065H	65nb	75	73 x 228	40	172
FM189-142-080A	80nb	25	89 x 140	40	128
FM189-142-080B	80nb	38	89 x 165	40	141
FM189-142-080C	80nb	50	89 x 190	40	153
FM189-142-080G	80nb	63	89 x 220	40	168
FM189-142-080H	80nb	75	89 x 240	40	178
FM189-142-100A	100nb	25	115 x 165	40	141
FM189-142-100B	100nb	38	115 x 190	40	153
FM189-142-100C	100nb	50	115 x 220	40	168
FM189-142-100G	100nb	63	115 x 240	40	178
FM189-142-100H	100nb	75	115 x 268	40	192
FM189-142-125A	125nb	25	140 x 190	40	153
FM189-142-125B	125nb	38	140 x 220	40	168
FM189-142-125C	125nb	50	140 x 240	40	178
FM189-142-125G	125nb	63	140 x 268	40	192
FM189-142-125H	125nb	75	140 x 300	40	208
FM189-142-150A	150nb	25	168 x 220	40	168
FM189-142-150B	150nb	38	168 x 240	40	178
FM189-142-150C	150nb	50	168 x 268	40	192
FM189-142-150G	150nb	63	168 x 300	40	208
FM189-142-150H	150nb	75	168 x 324	40	220
FM189-142-200A	200nb	25	220 x 275	40	196
FM189-142-200B	200nb	38	220 x 300	40	208
FM189-142-200C	200nb	50	220 x 324	40	220
FM189-142-200G	200nb	63	220 x 355	40	236
FM189-142-200H	200nb	75	220 x 375	40	246
FM189-142-250A	250nb	25	273 x 324	80	220
FM189-142-250B	250nb	38	273 x 356	80	236
FM189-142-250C	250nb	50	273 x 375	80	246
FM189-142-250G	250nb	63	273 x 406	80	283
FM189-142-250H	250nb	75	273 x 424	80	292
FM189-142-300A	300nb	25	324 x 375	80	246
FM189-142-300B	300nb	38	324 x 406	80	283
FM189-142-300C	300nb	50	324 x 424	80	292
FM189-142-300G	300nb	63	324 x 456	80	309
FM189-142-300H	300nb	75	324 x 475	80	318
FM189-142-350A	350nb	25	355 x 406	80	283
FM189-142-350B	350nb	38	355 x 424	80	292
FM189-142-350C	350nb	50	355 x 457	80	309
FM189-142-350G	350nb	63	355 x 486	80	321
FM189-142-350H	350nb	75	355 x 508	80	334
FM189-142-400A	400nb	25	406 x 457	80	309
FM189-142-400B	400nb	38	406 x 486	80	321
FM189-142-400C	400nb	50	406 x 508	80	334
FM189-142-400G	400nb	63	406 x 536	80	347
FM189-142-400H	400nb	75	406 x 557	80	359
FM189-142-450A	450nb	25	457 x 508	80	334
FM189-142-450B	450nb	38	457 x 536	80	347
FM189-142-450C	450nb	50	457 x 557	80	359
FM189-142-450G	450nb	63	457 x 587	80	372
FM189-142-450H	450nb	75	457 x 608	80	386
FM189-142-500A	500nb	25	508 x 557	80	359
FM189-142-500B	500nb	38	508 x 587	80	372
FM189-142-500C	500nb	50	508 x 610	80	386
FM189-142-500G	500nb	63	508 x 638	80	400
FM189-142-500H	500nb	75	508 x 658	80	410

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.1	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	50.8	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05

Heavy Duty Floor Mounted Riser Guide & Ferrule | FM189-142

Product Table

PIPE

CHART GUIDE

ENGINEERING
CATALOGUE 9.4

CONSUMABLES
CATALOGUE 3.1

SUPA
CATALOGUE 4.5

Related Products

Something looks off
or need more detail?

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	32	0.259	0.790
40	40	0.331	1.239
50	50	0.420	1.940
56	56	0.471	2.434
63	63	0.536	3.087
75	75	0.644	4.383
90	90	0.903	6.313
110	110	1.350	9.424
125	125	1.750	12.171
160	160	2.840	19.947
200	200	3.580	31.216
250	250	5.630	48.774
315	315	8.920	77.442

NOMINAL SIZE	PIPE O.D [mm]	CUTTER O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
225	269	257	22	61.74
300	346	336	35	105.70
375	427	415	51	161.39
450	512	504	67	225.96
535	594	584	86	310.89
600	678	664	111	393.60
675	752	733	133	490.66
750	802	783	157	598.80
