SUITS STEEL PIPE

Heavy 3 Bolt Clamp | FM171H

Part No. 'Select an option' Category Petro Chem Clamps Tag Steel Pipe

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

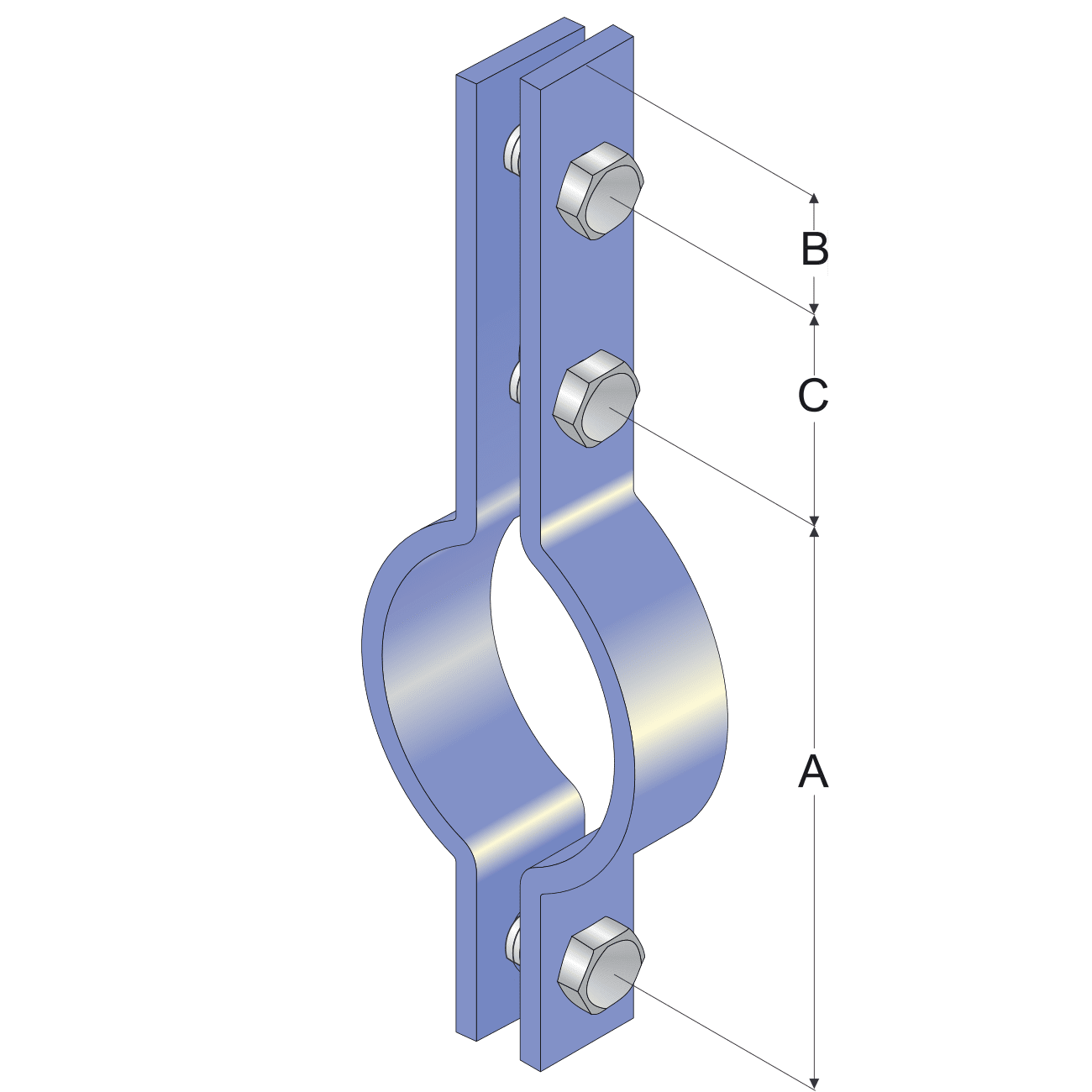

PART NO. [HDG]	PIPE DIA.	PIPE O.D [mm]	‘A’ [mm]	‘B’ [mm]	‘C’ [mm]	MATERIAL [W x T]	HOLE DIA.
FM171H-021	15nb	21.3	66	15	70	40 x 6	12Ø
FM171H-027	20nb	26.9	70	15	70	40 x 6	12Ø
FM171H-034	25nb	33.7	76	18	70	40 x 6	12Ø
FM171H-043	32nb	42.4	90	18	70	40 x 6	14Ø
FM171H-048	40nb	48.3	96	18	85	40 x 6	14Ø
FM171H-060	50nb	60.3	106	18	80	40 x 6	14Ø
FM171H-076	65nb	76.1	156	24	90	40 x 8	18Ø
FM171H-089	80nb	88.9	166	24	95	40 x 8	18Ø
FM171H-115	100nb	114.3	190	24	95	40 x 8	18Ø
FM171H-140	125nb	139.7	216	24	95	40 x 8	18Ø
FM171H-168	150nb	168.3	246	24	95	40 x 8	18Ø
FM171H-194	175nb	193.7	288	30	85	50 x 10	22Ø
FM171H-219	200nb	219.1	316	30	95	50 x 10	22Ø
FM171H-245	225nb	244.5	366	30	85	65 x 16	22Ø
FM171H-273	250nb	273	390	30	90	65 x 16	22Ø
FM171H-324	300nb	323.9	476	36	75	65 x 20	26Ø
FM171H-356	350nb	355.6	526	45	80	65 x 20	32Ø
FM171H-406	400nb	406.4	600	45	75	100 x 25	32Ø
FM171H-457	450nb	457	660	54	85	100 x 25	42Ø
FM171H-508	500nb	508	740	54	85	100 x 30	42Ø
FM171H-559	550nb	559	790	54	85	100 x 30	42Ø
FM171H-610	600nb	610	880	63	95	100 x 35	48Ø

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.0	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	51.2	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05

Heavy 3 Bolt Clamp | FM171H

Product Table

PIPE

CHART GUIDE

ENGINEERING CATALOGUE 9.3

CONSUMABLES CATALOGUE 3.1

SUPA
CATALOGUE 4.5

Related Products

You may also like…

Light 3 Bolt Clamp | FM171L

Heavy 2 Bolt Clamp | FM170H

Light 2 Bolt Clamp | FM170L

Something looks off
or need more detail?

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	32	0.259	0.790
40	40	0.331	1.239
50	50	0.420	1.940
56	56	0.471	2.434
63	63	0.536	3.087
75	75	0.644	4.383
90	90	0.903	6.313
110	110	1.350	9.424
125	125	1.750	12.171
160	160	2.840	19.947
200	200	3.580	31.216
250	250	5.630	48.774
315	315	8.920	77.442

NOMINAL SIZE	PIPE O.D [mm]	CUTTER O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
225	269	257	22	61.74
300	346	336	35	105.70
375	427	415	51	161.39
450	512	504	67	225.96
535	594	584	86	310.89
600	678	664	111	393.60
675	752	733	133	490.66
750	802	783	157	598.80
