Browse part numbers, sizes and technical data
To view data turn phone to landscape

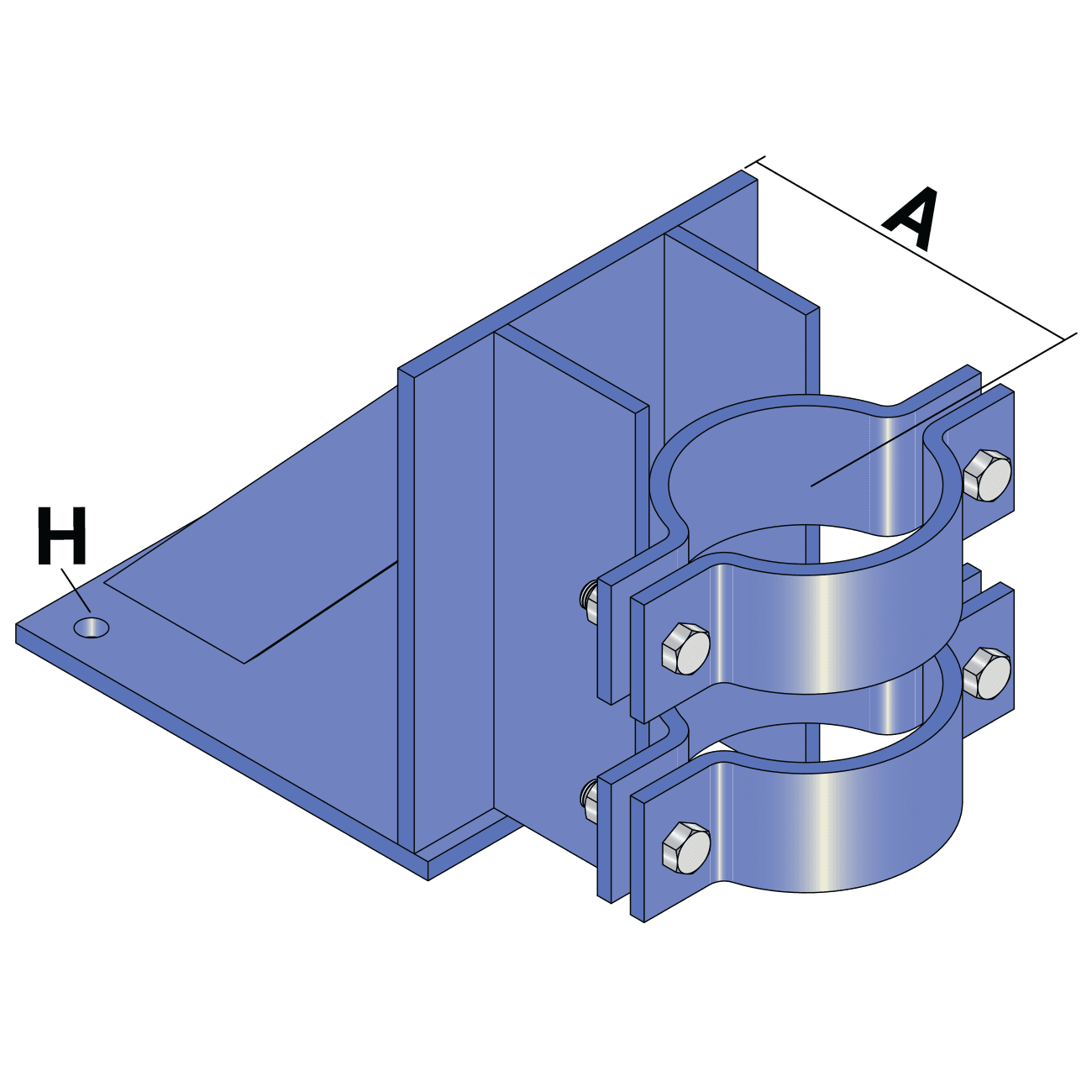

| PART NO. [HDG] | PIPE SIZE | STANDARD ‘A’ [mm] | ‘H’ [mm] |
|---|---|---|---|
| FM191-3-073 | 65nb | 81 | 18Ø |
| FM191-3-089 | 80nb | 88 | 18Ø |
| FM191-3-115 | 100nb | 101 | 18Ø |
| FM191-3-140 | 125nb | 125 | 18Ø |
| FM191-3-168 | 150nb | 142 | 18Ø |
| FM191-3-220 | 200nb | 168 | 18Ø |
| FM191-3-273 | 250nb | 195 | 18Ø |
| INSTALLATION REQUIREMENTS |
|---|
| 1. Concrete strength 25MPa MIN. 2. concrete slab thickness 200mm MIN. 3. Type 3 Pipe Clamp bolts to be: Class 8.8 M20 zinc bolts torqued to 120Nm. 4. Concrete anchors to be installed to manufacturers recommendations. 5. Type 3 Pipe clamps must be welded to pipe after initial placement. 4mm FW 4x40mm runs to each clamp, Min. weld strength 490MPa. 6. Anchor bracket to be mounted to top of floor slab. 7. Anchor mounting plate to bear completely on floor slab (no overhang) |
| PART NO. | QTY | FIXING TYPE | hef [mm] | MIN EMBEDMENT [mm] | MAX ‘A’ DIMENSION [mm] | WORKING LOAD [KG] | |
|---|---|---|---|---|---|---|---|
 | TB16130/C2 | 3 | THRU-BOLT | 86 | 97 | 200 | 1200 |
| PART NO. | QTY | FIXING TYPE | hef [mm] | MIN EMBEDMENT [mm] | MAX ‘A’ DIMENSION [mm] | WORKING LOAD [KG] | |
|---|---|---|---|---|---|---|---|
 | CHEM-HY420 | 1 | CHEMICAL ANCHOR | 250 | 1500 | ||
 | CPS16190G | 3 | CAST IN STUD | 120 | 120 |
