SUITS COPPER PIPE

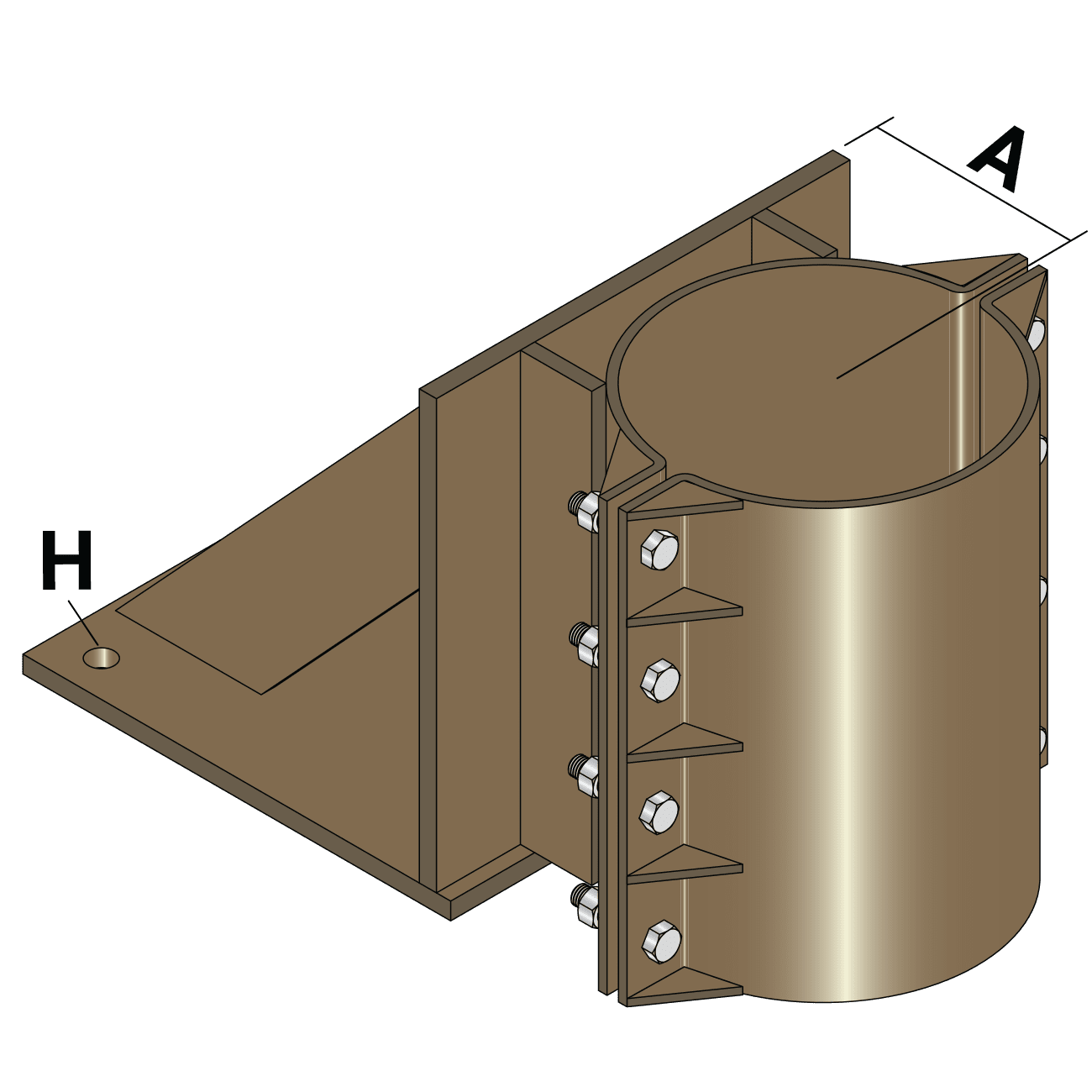

Floor Anchor | FM191-4

2200 - 3000 kg

Part No. 'Select an option' Category Anchors Tag Copper Pipe

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

PLEASE NOTE: MAX ‘A’ DIMENSION & WORKING LOAD IS DETERMINED BY FIXING USED

PLEASE VIEW ‘REQUIRED FIXINGS’ FOR DATA

PART NO. [POLY BROWN]	PIPE SIZE	STANDARD ‘A’ [mm]	‘H’ [mm]
FM191-4-064	65cu	76	18Ø
FM191-4-076	80cu	81	18Ø
FM191-4-102	100cu	94	18Ø
FM191-4-127	125cu	108	18Ø
FM191-4-152	150cu	134	18Ø
FM191-4-203	203cu	160	18Ø

INSTALLATION REQUIREMENTS

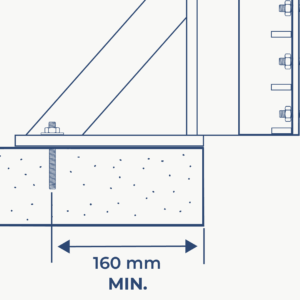

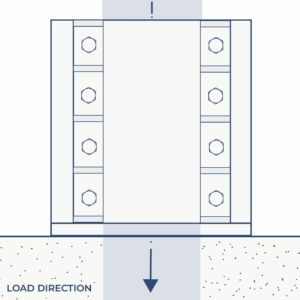

1. Concrete strength 25MPa MIN. 2. Pipe Clamp bolts to be Class 8.8 M12 zinc bolts torqued to 50Nm. 3. Concrete anchors to be installed to manufacturers recommendations. 4. ANCHOR BRACKET TO BE MOUNTED TO TOP OF FLOOR SLAB. ANCHOR MOUNTING PLATE TO BEAR COMPLETELY ON FLOOR SLAB (NO OVERHANG).

	PART NO.	QTY	FIXING TYPE	hef [mm]	MIN EMBEDMENT [mm]	MAX ‘A’ DIMENSION [mm]	WORKING LOAD [KG]
	TB16130/C2	3	THRU-BOLT	86	97	180	2200

	PART NO.	QTY	FIXING TYPE	hef [mm]	MIN EMBEDMENT [mm]	MAX ‘A’ DIMENSION [mm]	WORKING LOAD [KG]
	CPS16190G	3	CAST IN STUD	120	120	250	3000
	CHEM-HY420	1	CHEMICAL ANCHOR

PIPE CHART GUIDE

CLICK TO OPEN TABLES BELOW

STEEL PIPE SCHEDULE 40

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

STEEL PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

COPPER PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.1	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	50.8	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

DWV PVC PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

PRESSURE PVC PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05

HDPE PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	32	0.259	0.790
40	40	0.331	1.239
50	50	0.420	1.940
56	56	0.471	2.434
63	63	0.536	3.087
75	75	0.644	4.383
90	90	0.903	6.313
110	110	1.350	9.424
125	125	1.750	12.171
160	160	2.840	19.947
200	200	3.580	31.216
250	250	5.630	48.774
315	315	8.920	77.442

F.R.C PIPE

NOMINAL SIZE	PIPE O.D [mm]	CUTTER O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
225	269	257	22	61.74
300	346	336	35	105.70
375	427	415	51	161.39
450	512	504	67	225.96
535	594	584	86	310.89
600	678	664	111	393.60
675	752	733	133	490.66
750	802	783	157	598.80

CPVC PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
25	34	0.39	1.01
32	43	0.62	1.61
40	48	0.82	2.11
50	60	1.28	3.31

DICL PIPE

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
100	122 + 1, - 2	17	27.57
150	177 + 1, - 2	25	47.97
200	232 + 1, - 2	33	73.11
225	259 + 1, - 2	39	89.11
250	286 + 1, - 2	45	106.05
300	345 + 1, - 2	60	148.88
375	426 + 2	83	218.53
