Browse part numbers, sizes and technical data
To view data turn phone to landscape

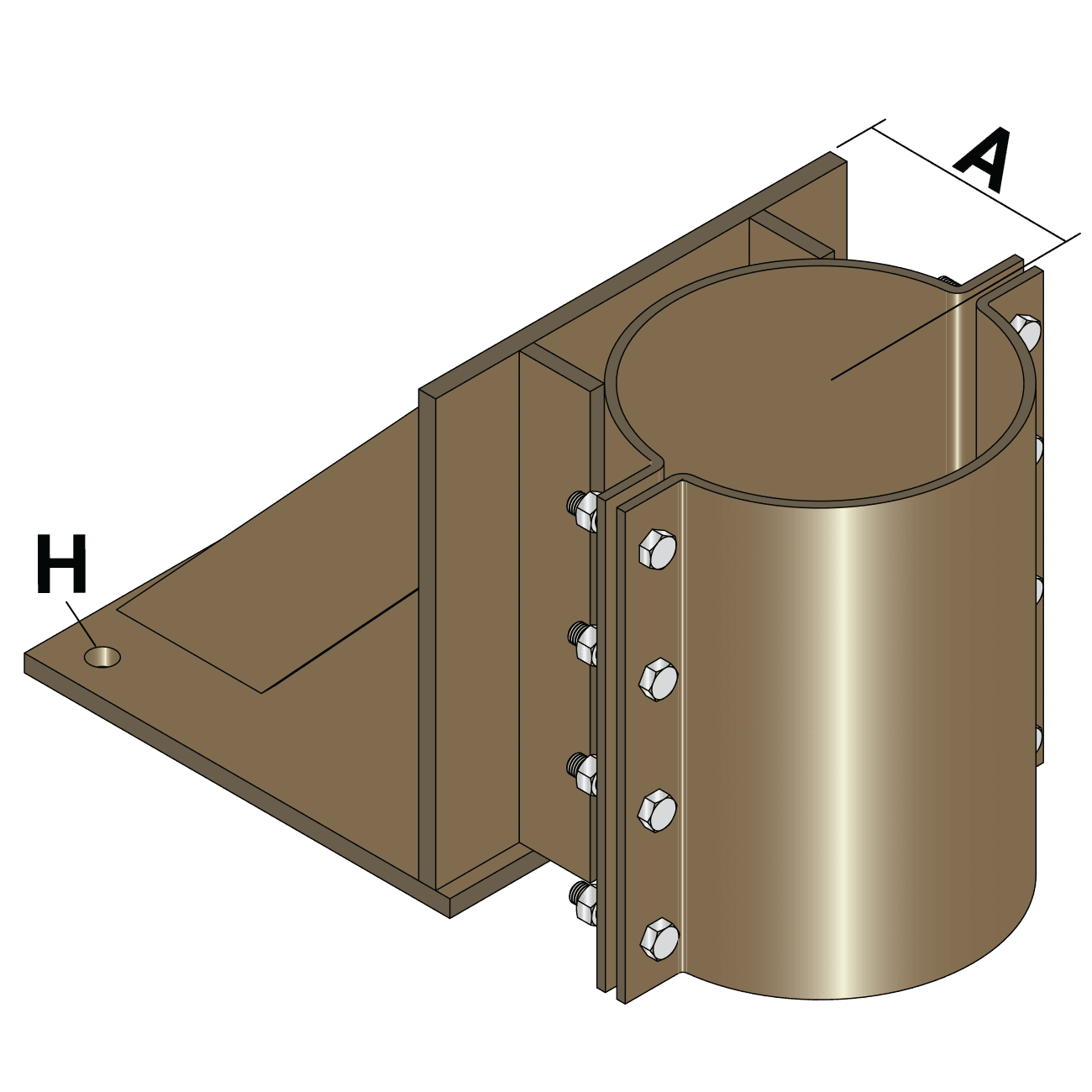

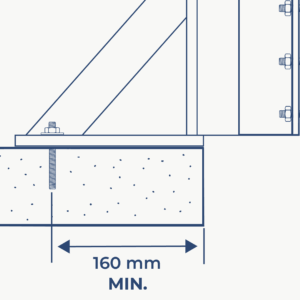

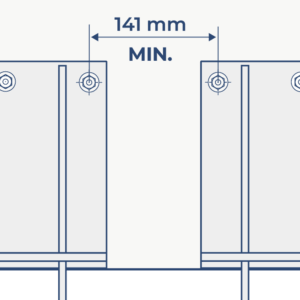

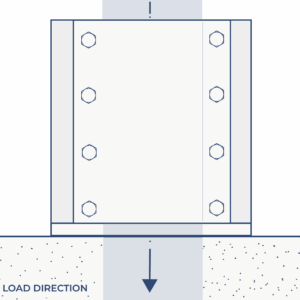

| PART NO. [POLY BROWN] | PIPE SIZE | STANDARD ‘A’ [mm] | ‘H’ [mm] |
|---|---|---|---|
| FM191-3-051 | 50cu | 73 | 18Ø |
| FM191-3-064 | 65cu | 76 | 18Ø |
| FM191-3-076 | 80cu | 81 | 18Ø |
| FM191-3-102 | 100cu | 94 | 18Ø |
| FM191-3-127 | 125cu | 108 | 18Ø |
| FM191-3-152 | 150cu | 134 | 18Ø |
| FM191-3-203 | 200cu | 160 | 18Ø |
| INSTALLATION REQUIREMENTS |
|---|

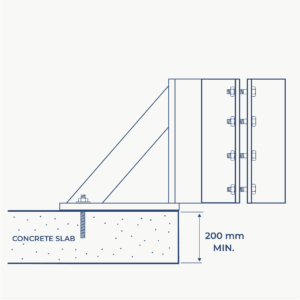

| 1. Concrete strength 25MPa MIN. 2. Pipe Clamp bolts to be Class 8.8 M12 zinc bolts torqued to 50Nm. 3. Concrete anchors to be installed to manufacturers recommendations. 4. ANCHOR BRACKET TO BE MOUNTED TO TOP OF FLOOR SLAB. ANCHOR MOUNTING PLATE TO BEAR COMPLETELY ON FLOOR SLAB (NO OVERHANG). |
| PART NO. | QTY | FIXING TYPE | hef [mm] | MIN EMBEDMENT [mm] | MAX ‘A’ DIMENSION [mm] | WORKING LOAD [KG] | |
|---|---|---|---|---|---|---|---|
 | TB16130/C2 | 3 | THRU-BOLT | 86 | 97 | 200 | 1200 |
| PART NO. | QTY | FIXING TYPE | hef [mm] | MIN EMBEDMENT [mm] | MAX ‘A’ DIMENSION [mm] | WORKING LOAD [KG] | |
|---|---|---|---|---|---|---|---|
 | CHEM-HY420 | 1 | CHEMICAL ANCHOR | 250 | 1500 | ||
 | CPS16190G | 3 | CAST IN STUD | 120 | 120 |
