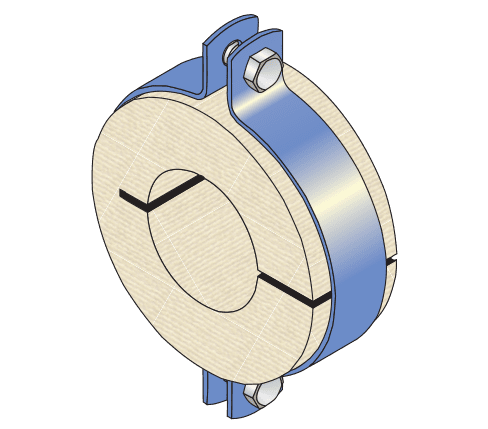

Browse part numbers, sizes and technical data
| PART NO. [HDG] | PIPE DIA. | INS. | FERRULE [I.D x O.D] | FERRULE WIDTH | CLAMP MATERIAL | CLAMP PART NO. | SUITS CLEVIS |
|---|---|---|---|---|---|---|---|
| FM122-015A | 15nb | 25 | 21 x 76 | 40 | 20 x 3 | FM6-076 | FM153-M10 |
| FM122-015B | 15nb | 38 | 21 x 102 | 40 | 20 x 3 | FM6-102 | FM153-M10 |
| FM122-015C | 15nb | 50 | 21 x 127 | 40 | 25 x 5 | FM6-127 | FM153-M10 |
| FM122-020A | 20nb | 25 | 27 x 76 | 40 | 20 x 3 | FM6-076 | FM153-M10 |
| FM122-020B | 20nb | 38 | 27 x 102 | 40 | 20 x 3 | FM6-102 | FM153-M10 |
| FM122-020C | 20nb | 50 | 27 x 127 | 40 | 25 x 5 | FM6-127 | FM153-M10 |
| FM122-025A | 25nb | 25 | 34 x 83 | 40 | 20 x 3 | FM6-083 | FM153-M10 |
| FM122-025B | 25nb | 38 | 34 x 115 | 40 | 25 x 3 | FM6-115 | FM153-M10 |
| FM122-025C | 25nb | 50 | 34 x 140 | 40 | 25 x 5 | FM6-140 | FM153-M10 |
| FM122-032A | 32nb | 25 | 43 x 89 | 40 | 20 x 3 | FM6-089 | FM153-M10 |
| FM122-032B | 32nb | 38 | 43 x 115 | 40 | 25 x 3 | FM6-115 | FM153-M10 |
| FM122-032C | 32nb | 50 | 43 x 140 | 40 | 25 x 5 | FM6-140 | FM153-M10 |
| FM122-040A | 40nb | 25 | 48 x 102 | 40 | 20 x 3 | FM6-102 | FM153-M10 |
| FM122-040B | 40nb | 38 | 48 x 127 | 40 | 25 x 5 | FM6-127 | FM153-M10 |
| FM122-040C | 40nb | 50 | 48 x 152 | 40 | 25 x 5 | FM6-152 | FM153-M10 |
| FM122-050A | 50nb | 25 | 60 x 115 | 40 | 25 x 3 | FM6-115 | FM153-M10 |
| FM122-050B | 50nb | 38 | 60 x 140 | 40 | 25 x 5 | FM6-140 | FM153-M10 |
| FM122-050C | 50nb | 50 | 60 x 165 | 40 | 25 x 5 | FM6-165 | FM153-M10 |
| FM122-050G | 50nb | 63 | 60 x 190 | 40 | 25 x 5 | FM6-190 | FM153-M10 |
| FM122-050H | 50nb | 75 | 60 x 203 | 40 | 25 x 5 | FM6-203 | FM153-M10 |
| FM122-065A | 65nb | 25 | 73 x 127 | 40 | 25 x 5 | FM6-127 | FM153-M10 |
| FM122-065B | 65nb | 38 | 73 x 152 | 40 | 25 x 5 | FM6-152 | FM153-M10 |
| FM122-065C | 65nb | 50 | 73 x 178 | 40 | 25 x 5 | FM6-178 | FM153-M10 |
| FM122-065G | 65nb | 63 | 73 x 203 | 40 | 25 x 5 | FM6-203 | FM153-M10 |
| FM122-065H | 65nb | 75 | 73 x 228 | 40 | 25 x 5 | FM6-228 | FM153-M10 |
| FM122-080A | 80nb | 25 | 89 x 140 | 40 | 25 x 5 | FM6-140 | FM153-M10 |
| FM122-080B | 80nb | 38 | 89 x 165 | 40 | 25 x 5 | FM6-165 | FM153-M10 |
| FM122-080C | 80nb | 50 | 89 x 190 | 40 | 25 x 5 | FM6-190 | FM153-M10 |
| FM122-080G | 80nb | 63 | 89 x 220 | 40 | 25 x 5 | FM6-220 | FM153-M10 |
| FM122-080H | 80nb | 75 | 89 x 240 | 40 | 25 x 5 | FM6-240 | FM153-M10 |
| FM122-100A | 100nb | 25 | 115 x 165 | 40 | 25 x 5 | FM6-165 | FM153-M10 |
| FM122-100B | 100nb | 38 | 115 x 190 | 40 | 25 x 5 | FM6-190 | FM153-M10 |
| FM122-100C | 100nb | 50 | 115 x 220 | 40 | 25 x 5 | FM6-220 | FM153-M10 |
| FM122-100G | 100nb | 63 | 115 x 240 | 40 | 25 x 5 | FM6-240 | FM153-M10 |
| FM122-100H | 100nb | 75 | 115 x 268 | 40 | 40 x 6 | FM16-268 | FM153-M12 |
| FM122-125A | 125nb | 25 | 140 x 190 | 40 | 25 x 5 | FM6-190 | FM153-M10 |
| FM122-125B | 125nb | 38 | 140 x 220 | 40 | 25 x 5 | FM6-220 | FM153-M10 |
| FM122-125C | 125nb | 50 | 140 x 240 | 40 | 25 x 5 | FM6-240 | FM153-M10 |
| FM122-125G | 125nb | 63 | 140 x 268 | 40 | 40 x 6 | FM16-268 | FM153-M12 |
| FM122-125H | 125nb | 75 | 140 x 300 | 40 | 40 x 6 | FM16-300 | FM153-M12 |
| FM122-150A | 150nb | 25 | 168 x 220 | 40 | 40 x 6 | FM16-220 | FM153-M12 |
| FM122-150B | 150nb | 38 | 168 x 240 | 40 | 40 x 6 | FM16-240 | FM153-M12 |
| FM122-150C | 150nb | 50 | 168 x 268 | 40 | 40 x 6 | FM16-268 | FM153-M12 |
| FM122-150G | 150nb | 63 | 168 x 300 | 40 | 40 x 6 | FM16-300 | FM153-M12 |
| FM122-150H | 150nb | 75 | 168 x 324 | 40 | 40 x 6 | FM16-324 | FM153-M12 |
| FM122-200A | 200nb | 25 | 220 x 275 | 40 | 40 x 6 | FM16-275 | FM153-M12 |
| FM122-200B | 200nb | 38 | 220 x 300 | 40 | 40 x 6 | FM16-300 | FM153-M12 |
| FM122-200C | 200nb | 50 | 220 x 324 | 40 | 40 x 6 | FM16-324 | FM153-M12 |
| FM122-200G | 200nb | 63 | 220 x 355 | 40 | 40 x 6 | FM16-355 | FM153-M12 |
| FM122-200H | 200nb | 75 | 220 x 375 | 40 | 40 x 6 | FM16-375 | FM153-M12 |
| FM122-250AÂ | 250nb | 25 | 273 x 324 | 80 | 50 x 6 | FM120-324 (50 x 6) | FM153-M16 |
| FM122-250B | 250nb | 38 | 273 x 356 | 80 | 50 x 6 | FM120-356 (50 x 6) | FM153-M16 |
| FM122-250C | 250nb | 50 | 273 x 375 | 80 | 50 x 6 | FM120-375 (50 x 6) | FM153-M16 |
| FM122-250G | 250nb | 63 | 273 x 406 | 80 | 50 x 6 | FM120-406 (50 x 6) | FM153-M16 |
| FM122-250H | 250nb | 75 | 273 x 424 | 80 | 50 x 10 | FM120-424 (50 x 10) | FM153-M20 |
| FM122-300A | 300nb | 25 | 324 x 375 | 80 | 50 x 10 | FM120-375 (50 x 10) | FM153-M20 |
| FM122-300B | 300nb | 38 | 324 x 406 | 80 | 50 x 10 | FM120-406 (50 x 10) | FM153-M20 |
| FM122-300C | 300nb | 50 | 324 x 424 | 80 | 50 x 10 | FM120-424 (50 x 10) | FM153-M20 |
| FM122-300G | 300nb | 63 | 324 x 457 | 80 | 50 x 10 | FM120-457 (50 x 10) | FM153-M20 |
| FM122-300H | 300nb | 75 | 324 x 475 | 80 | 50 x 10 | FM120-475 (50 x 10) | FM153-M20 |
| FM122-350A | 350nb | 25 | 355 x 406 | 80 | 65 x 10 | FM120-406 (65 x 10) | FM153-M20 |
| FM122-350B | 350nb | 38 | 355 x 424 | 80 | 65 x 10 | FM120-424 (65 x 10) | FM153-M20 |
| FM122-350C | 350nb | 50 | 355 x 457 | 80 | 65 x 10 | FM120-457 (65 x 10) | FM153-M20 |
| FM122-350G | 350nb | 63 | 355 x 486 | 80 | 65 x 10 | FM120-486 (65 x 10) | FM153-M20 |
| FM122-350H | 350nb | 75 | 355 x 508 | 80 | 65 x 10 | FM120-508 (65 x 10) | FM153-M20 |
| FM122-400A | 400nb | 25 | 406 x 457 | 80 | 65 x 10 | FM120-457 (65 x 10) | FM153-M20 |
| FM122-400B | 400nb | 38 | 406 x 486 | 80 | 75 x 10 | FM120-486 (75 x 10) | FM153-M24 |
| FM122-400C | 400nb | 50 | 406 x 508 | 80 | 75 x 10 | FM120-508 (75 x 10) | FM153-M24 |
| FM122-400G | 400nb | 63 | 406 x 536 | 80 | 75 x 10 | FM120-536 (75 x 10) | FM153-M24 |
| FM122-400H | 400nb | 75 | 406 x 557 | 80 | 75 x 10 | FM120-557 (75 x 10) | FM153-M24 |
| FM122-450A | 450nb | 25 | 457 x 508 | 80 | 75 x 12 | FM120-508 (75 x 12) | FM153-M24 |
| FM122-450B | 450nb | 38 | 457 x 536 | 80 | 75 x 12 | FM120-536 (75 x 12) | FM153-M24 |
| FM122-450C | 450nb | 50 | 457 x 557 | 80 | 75 x 12 | FM120-557 (75 x 12) | FM153-M24 |
| FM122-450G | 450nb | 63 | 457 x 587 | 80 | 75 x 12 | FM120-587 (75 x 12) | FM153-M24 |
| FM122-450H | 450nb | 75 | 457 x 608 | 80 | 75 x 12 | FM120-608 (75 x 12) | FM153-M24 |
| FM122-500A | 500nb | 25 | 508 x 557 | 80 | 75 x 16 | FM120-557 (75 x 16) | FM153-M24 |
| FM122-500B | 500nb | 38 | 508 x 587 | 80 | 75 x 16 | FM120-587 (75 x 16) | FM153-M24 |
| FM122-500C | 500nb | 50 | 508 x 610 | 80 | 75 x 16 | FM120-610 (75 x 16) | FM153-M24 |
| FM122-500G | 500nb | 63 | 508 x 638 | 80 | 75 x 16 | FM120-638 (75 x 16) | FM153-M24 |
| FM122-500H | 500nb | 75 | 508 x 658 | 80 | 75 x 16 | FM120-658 (75 x 16) | FM153-M24 |
| FM122-600A | 600nb | 25 | 610 x 658 | 80 | 75 x 16 | FM120-658 (75 x 16) | FM153-M24 |
| FM122-600B | 600nb | 38 | 610 x 686 | 80 | 75 x 16 | FM120-686 (75 x 16) | FM153-M24 |
| FM122-600C | 600nb | 50 | 610 x 710 | 80 | 75 x 16 | FM120-710 (75 x 16) | FM153-M24 |
| FM122-600G | 600nb | 63 | 610 x 740 | 80 | 75 x 16 | FM120-740 (75 x 16) | FM153-M24 |
| FM122-600H | 600nb | 75 | 610 x 760 | 80 | 75 x 16 | FM120-760 (75 x 16) | FM153-M24 |
Click to View
Click to View
Click to View
If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.
Thanks for helping us keep things accurate.
CLICK TO OPEN TABLES BELOW
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 8 | 13.7 | 0.63 | 0.7 |
| 10 | 17.1 | 0.84 | 0.96 |
| 15 | 21.3 | 1.27 | 1.47 |
| 20 | 26.7 | 1.69 | 2.04 |
| 25 | 33.4 | 2.5 | 3.05 |
| 32 | 42.2 | 3.39 | 4.36 |
| 40 | 48.3 | 4.05 | 5.37 |
| 50 | 60.3 | 5.44 | 7.6 |
| 65 | 73 | 8.63 | 11.72 |
| 80 | 88.9 | 11.29 | 16.06 |
| 90 | 101.6 | 13.57 | 19.95 |
| 100 | 114.3 | 16.07 | 24.28 |
| 125 | 141.3 | 21.77 | 34.68 |
| 150 | 168.3 | 28.26 | 46.91 |
| 200 | 219.1 | 42.55 | 74.83 |
| 250 | 273.1 | 60.31 | 111.2 |
| 300 | 323.9 | 79.73 | 151.97 |
| 350 | 355.6 | 94.55 | 181.82 |
| 400 | 406.4 | 123.3 | 237.31 |
| 450 | 457 | 155.8 | 299.98 |
| 500 | 508 | 183.42 | 362.12 |
| 600 | 610 | 255.41 | 515.12 |
| 800 | 813 | 342.91 | 818.35 |
| 900 | 914 | 420.42 | 1022.98 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 8 | 14 | 0.68 | 0.74 |
| 10 | 17 | 0.89 | 1.01 |
| 15 | 21 | 1.27 | 1.47 |
| 20 | 27 | 1.65 | 2.02 |
| 25 | 34 | 2.52 | 3.11 |
| 32 | 43 | 3.24 | 4.26 |
| 40 | 48 | 3.73 | 5.11 |
| 50 | 60 | 5.24 | 7.46 |
| 65 | 76 | 6.69 | 10.42 |
| 80 | 89 | 8.68 | 13.82 |
| 100 | 114 | 12.4 | 21.11 |
| 125 | 140 | 16.5 | 29.75 |
| 150 | 165 | 19.6 | 38.55 |
| 200 | 219 | 42.53 | 74.81 |
| 250 | 273 | 60.29 | 111.14 |
| 300 | 324 | 73.82 | 146.81 |
| 350 | 355 | 81.28 | 170.05 |
| 400 | 406 | 93.21 | 211.05 |
| 450 | 457 | 105.14 | 255.75 |
| 500 | 508 | 117.07 | 304.85 |
| 600 | 610 | 140.94 | 414.85 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 15 | 12.7 | 0.30 | 0.39 |
| 18 | 15.9 | 0.43 | 0.58 |
| 20 | 19.1 | 0.52 | 0.75 |
| 25 | 25.4 | 0.83 | 1.25 |
| 32 | 31.8 | 1.05 | 1.72 |
| 40 | 38.1 | 1.27 | 2.27 |
| 50 | 50.8 | 1.70 | 3.57 |
| 65 | 63.5 | 2.14 | 5.07 |
| 80 | 76.2 | 3.42 | 7.60 |
| 90 | 88.9 | 4.00 | 9.76 |
| 100 | 101.6 | 4.58 | 12.18 |
| 125 | 127.0 | 5.74 | 17.77 |
| 150 | 152.4 | 8.58 | 25.86 |
| 175 | 177.8 | 10.03 | 33.74 |
| 200 | 203.2 | 11.48 | 42.63 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 32 | 38 | 0.34 | 1.14 |
| 40 | 43.1 | 0.50 | 1.76 |
| 50 | 56.0 | 0.67 | 2.59 |
| 65 | 69.1 | 1.0 | 4.14 |
| 80 | 82.7 | 1.17 | 5.58 |
| 100 | 110.4 | 2.00 | 9.85 |
| 150 | 160.5 | 3.84 | 21.51 |
| 225 | 250.7 | 9.00 | 48.74 |
| 300 | 315.9 | 14.50 | 85.15 |
| 375 | 400 | 23.34 | 133.73 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 15 | 21 | 0.15 | 0.33 |
| 20 | 27 | 0.25 | 0.56 |
| 25 | 34 | 0.39 | 0.88 |
| 32 | 42 | 0.62 | 1.42 |
| 40 | 48 | 0.80 | 2.06 |
| 50 | 60 | 1.26 | 3.22 |
| 65 | 75 | 2.13 | 5.65 |
| 80 | 89 | 2.31 | 7.33 |
| 100 | 114 | 4.50 | 12.35 |
| 125 | 140 | 7.43 | 19.70 |
| 150 | 160 | 9.67 | 27.33 |
| 155 | 168 | 10.00 | 28.85 |
| 200 | 225 | 15.83 | 47.23 |
| 225 | 250 | 15.66 | 39.40 |
| 250 | 280 | 24.83 | 73.89 |
| 300 | 315 | 31.60 | 102.25 |
| 375 | 400 | 51.66 | 162.05 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 32 | 32 | 0.259 | 0.790 |
| 40 | 40 | 0.331 | 1.239 |
| 50 | 50 | 0.420 | 1.940 |
| 56 | 56 | 0.471 | 2.434 |
| 63 | 63 | 0.536 | 3.087 |
| 75 | 75 | 0.644 | 4.383 |
| 90 | 90 | 0.903 | 6.313 |
| 110 | 110 | 1.350 | 9.424 |
| 125 | 125 | 1.750 | 12.171 |
| 160 | 160 | 2.840 | 19.947 |
| 200 | 200 | 3.580 | 31.216 |
| 250 | 250 | 5.630 | 48.774 |
| 315 | 315 | 8.920 | 77.442 |
| NOMINAL SIZE | PIPE O.D [mm] | CUTTER O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|---|
| 225 | 269 | 257 | 22 | 61.74 |
| 300 | 346 | 336 | 35 | 105.70 |
| 375 | 427 | 415 | 51 | 161.39 |
| 450 | 512 | 504 | 67 | 225.96 |
| 535 | 594 | 584 | 86 | 310.89 |
| 600 | 678 | 664 | 111 | 393.60 |
| 675 | 752 | 733 | 133 | 490.66 |
| 750 | 802 | 783 | 157 | 598.80 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 25 | 34 | 0.39 | 1.01 |
| 32 | 43 | 0.62 | 1.61 |
| 40 | 48 | 0.82 | 2.11 |
| 50 | 60 | 1.28 | 3.31 |
| NOMINAL SIZE | O.D [mm] | MASS PIPE [kg/m] | M.P FILLED w/ WATER [kg/m] |
|---|---|---|---|
| 100 | 122 + 1, - 2 | 17 | 27.57 |
| 150 | 177 + 1, - 2 | 25 | 47.97 |
| 200 | 232 + 1, - 2 | 33 | 73.11 |
| 225 | 259 + 1, - 2 | 39 | 89.11 |
| 250 | 286 + 1, - 2 | 45 | 106.05 |
| 300 | 345 + 1, - 2 | 60 | 148.88 |
| 375 | 426 + 2 | 83 | 218.53 |
