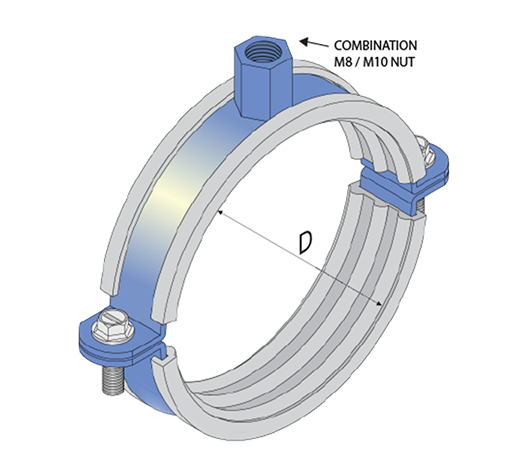

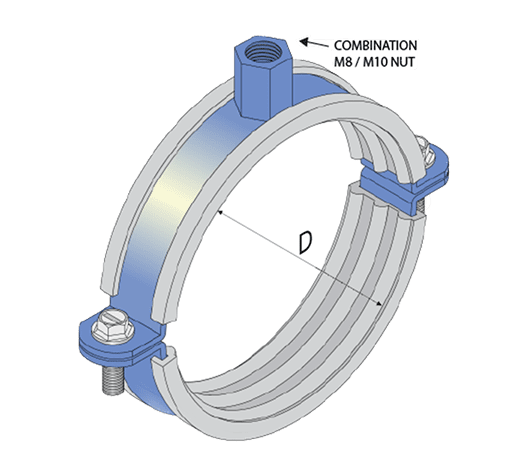

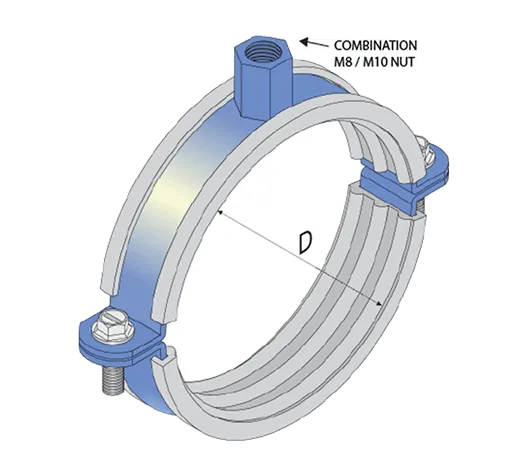

Double Bolted Acoustic Pipe Clips

Part No.

Clear

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

PART NO. [ZINC]	COPPER PIPE	STEEL PIPE	PRESSURE PIPE	DWV PVC PIPE	HDPE PIPE	PP_R PIPE	BOX QTY
SDB11-15	15cu						50
SDB15-19	20cu						50
SDB20-25	25cu				20 HDPE	25 mm	50
SDB26-30		20nb	20 PRESS		25 HDPE		25
SDB32-36	32cu	25nb	25 PRESS		32 HDPE	32 mm	25
SDB38-43	40cu	32nb	32 PRESS	32/40 PVC	40 HDPE	40 mm	25
SDB47-51	50cu				50 HDPE	50 mm	20
SDB53-58					56 HDPE		20
SDB60-64	65cu	50nb	50 PRESS	50 PVC	63 HDPE	63 mm	20
SDB68-73		65nb	65 PRESS	65 PVC			20
SDB75-80	80cu				75 HDPE	75 mm	25
SDB81-86				80 PVC			25
SDB87-92		80nb	80 PRESS		90 HDPE	90 mm	25
SDB99-105	100cu						20
SDB108-116		100nb	100 PRESS	100 PVC	110 HDPE	110 mm	10
SDB125-130	125cu				125 HDPE	125 mm	20
SDB138-142		125nb	125 PRESS				20
SDB148-152	150cu						10
SDB159-165			150 PRESS	150 PVC	160 HDPE	160 mm	10
SDB200-212	200cu				200 HDPE		10
SDB248-252				225 PVC	250 HDPE		10

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.0	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	51.2	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05

Double Bolted Acoustic Pipe Clips

Product Table

PIPE

CHART GUIDE
