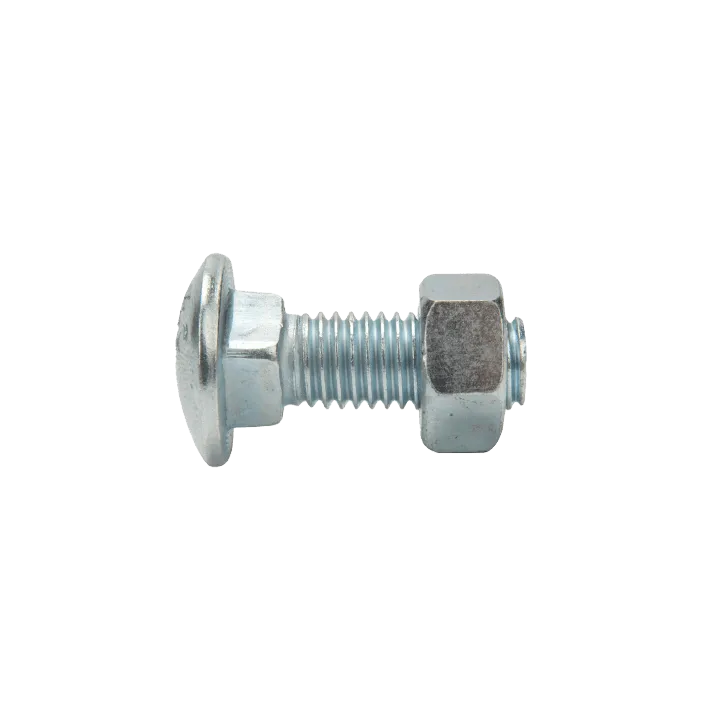

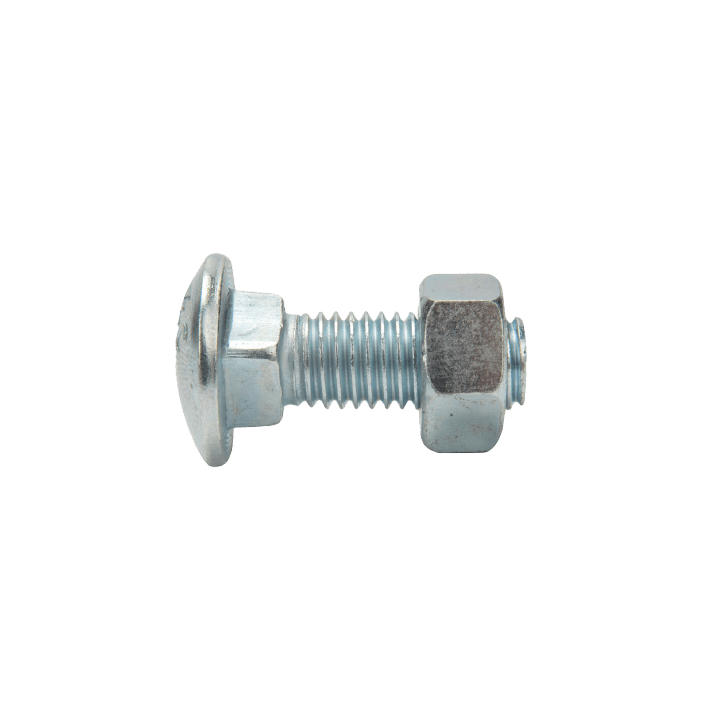

Cup Head Bolt & Nuts

Bolt and nut combination featuring a domed head with square neck

Part No. 'Select an option' Category Bolts

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

SIZE	LENGTH [mm]	PART NO. [ZINC]	BOX QTY	PART NO. [HDG]	BOX QTY	PART NO. [S/S]	BOX QTY
M6	20	CBNM6x20	200	CBNM6x20HDG	200
M6	25	CBNM6x25	200	CBNM6x25HDG	200	SSCBNM6x25	100
M6	30	CBNM6x30	200	CBNM6x30HDG	200	SSCBNM6x30	100
M6	40	CBNM6x40	200	CBNM6x40HDG	200	SSCBNM6x40	100
M6	45	CBNM6x45	200	CBNM6x45HDG	200
M6	50	CBNM6x50	200	CBNM6x50HDG	200	SSCBNM6x50	100
M6	60	CBNM6x60	150	CBNM6x60HDG	150	SSCBNM6x60	50
M6	65	CBNM6x65	150	CBNM6x65HDG	150
M6	70	CBNM6x70	150	CBNM6x70HDG	150	SSCBNM6x70	50
M6	75	CBNM6x75	150	CBNM6x75HDG	150
M6	80	CBNM6x80	150			SSCBNM6x80	50
M6	90	CBNM6x90	150	CBNM6x90HDG	150
M6	100	CBNM6x100	150	CBNM6x100HDG	150
M8	20	CBNM8x20	200	CBNM8x20HDG	200	SSCBNM8x20	100
M8	25	CBNM8x25	200	CBNM8x25HDG	200	SSCBNM8x25	50
M8	30	CBNM8x30	200	CBNM8x30HDG	200	SSCBNM8x30	50
M8	40	CBNM8x40	200	CBNM8x40HDG	200	SSCBNM8x40	50
M8	50	CBNM8x50	150	CBNM8x50HDG	150	SSCBNM8x50	50
M8	60	CBNM8x60	150	CBNM8x60HDG	150	SSCBNM8x60	50
M8	65	CBNM8x65	150	CBNM8x65HDG	150
M8	70	CBNM8x70	100	CBNM8x70HDG	100
M8	75	CBNM8x75	100	CBNM8x75HDG	100
M8	80					SSCBNM8x80	50
M8	90	CBNM8x90	100	CBNM8x90HDG	100
M8	100	CBNM8x100	100	CBNM8x100HDG	100	SSCBNM8x100	50
M10	25	CBNM10x25	200	CBNM10x25HDG	200	SSCBNM10x25	50
M10	30	CBNM10x30	200	CBNM10x30HDG	200	SSCBNM10x30	50
M10	40	CBNM10x40	150	CBNM10x40HDG	150	SSCBNM10x40	50
M10	45			CBNM10x45HDG	150
M10	50	CBNM10x50	100	CBNM10x50HDG	100	SSCBNM10x50	50
M10	60	CBNM10x60	100	CBNM10x60HDG	100	SSCBNM10x60	25
M10	65	CBNM10x65	100	CBNM10x65HDG	100
M10	70	CBNM10x70	100	CBNM10x70HDG	100	SSCBNM10x70	25
M10	75	CBNM10x75	100	CBNM10x75HDG	100
M10	80					SSCBNM10x80	25
M10	85	CBNM10x85	100	CBNM10x85HDG	100
M10	90	CBNM10x90	50	CBNM10x90HDG	50
M10	100	CBNM10x100	50	CBNM10x100HDG	50	SSCBNM10x100	25
M12	30			CBNM12x30HDG	200
M12	40	CBNM12x40	200	CBNM12x40HDG	200	SSCBNM12x40	25
M12	45			CBNM12x45HDG	150
M12	50	CBNM12x50	150	CBNM12x50HDG	150	SSCBNM12x50	25
M12	60			CBNM12x60HDG	150	SSCBNM12x60	25
M12	65	CBNM12x65	150	CBNM12x65HDG	150
M12	70	CBNM12x70	150	CBNM12x70HDG	150	SSCBNM12x70	25
M12	75	CBNM12x75	150	CBNM12x75HDG	150
M12	80					SSCBNM12x80	25
M12	85	CBNM12x85	100	CBNM12x85HDG	100
M12	90	CBNM12x90	100	CBNM12x90HDG	100
M12	100	CBNM12x100	100	CBNM12x100HDG	100	SSCBNM12x100	25

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.1	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	50.8	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05
