Bolt & Nut

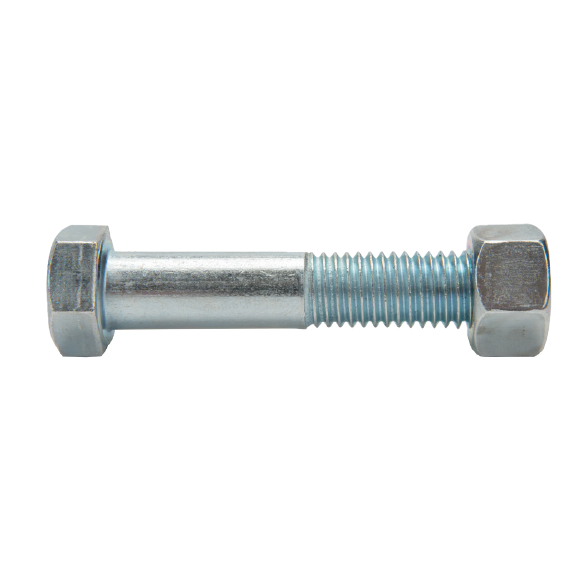

Bolt and nut combination featuring a hex head

Part No. 'Select an option' Category Bolts

Size

Length

Finish

Clear

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

SIZE	LENGTH [mm]	PART NO. [ZINC]	BOX QTY	PART NO. [HDG]	BOX QTY	PART NO. [S/S]	BOX QTY
M6	20	HBNM6x20	200	HBNM6x20HDG	200
M6	25	HBNM6x25	200	HBNM6x25HDG	200
M6	30	HBNM6x30	200	HBNM6x30HDG	200	SSHBNM6x30	100
M6	35	HBNM6x35	200	HBNM6x35HDG	200	SSHBNM6x35	100
M6	40	HBNM6x40	200	HBNM6x40HDG	200	SSHBNM6x40	100
M6	45	HBNM6x45	200	HBNM6x45HDG	200	SSHBNM6x45	100
M6	50	HBNM6x50	200	HBNM6x50HDG	200	SSHBNM6x50	100
M6	55	HBNM6x55	150			SSHBNM6x55	50
M6	60	HBNM6x60	150	HBNM6x60HDG	150	SSHBNM6x60	50
M6	65	HBNM6x65	150	HBNM6x65HDG	150	SSHBNM6x65	50
M6	70	HBNM6x70	150			SSHBNM6x70	50
M6	75	HBNM6x75	150	HBNM6x75HDG	150	SSHBNM6x75	50
M6	80	HBNM6x80	150	HBNM6x80HDG	150	SSHBNM6x80	50
M6	90	HBNM6x90	150			SSHBNM6x90	50
M6	100	HBNM6x100	150			SSHBNM6x100	50
M8	20	HBNM8x20	200	HBNM8x20HDG	200
M8	25	HBNM8x25	200	HBNM8x25HDG	200
M8	30	HBNM8x30	200	HBNM8x30HDG	200	SSHBNM8x30	100
M8	35	HBNM8x35	200	HBNM8x35HDG	200	SSHBNM8x35	100
M8	40	HBNM8x40	200	HBNM8x40HDG	200	SSHBNM8x40	100
M8	45	HBNM8x45	150	HBNM8x45HDG	150	SSHBNM8x45	100
M8	50	HBNM8x50	150	HBNM8x50HDG	150	SSHBNM8x50	100
M8	55	HBNM8x55	150	HBNM8x55HDG	150	SSHBNM8x55	50
M8	60	HBNM8x60	150	HBNM8x60HDG	150	SSHBNM8x60	50
M8	65	HBNM8x65	150	HBNM8x65HDG	150	SSHBNM8x65	50
M8	70	HBNM8x70	100	HBNM8x70HDG	100	SSHBNM8x70	50
M8	75	HBNM8x75	100	HBNM8x75HDG	100	SSHBNM8x75	50
M8	80	HBNM8x80	100	HBNM8x80HDG	100	SSHBNM8x80	50
M8	90	HBNM8x90	100	HBNM8x90HDG	100	SSHBNM8x90	50
M8	100	HBNM8x100	100	HBNM8x100HDG	100	SSHBNM8x100	50
M10	20	HBNM10x20	150	HBNM10x20HDG	150
M10	25	HBNM10x25	150	HBNM10x25HDG	150
M10	30	HBNM10x30	150	HBNM10x30HDG	150	SSHBNM10x30	100
M10	35	HBNM10x35	150	HBNM10x35HDG	150	SSHBNM10x35	100
M10	40	HBNM10x40	150	HBNM10x40HDG	150	SSHBNM10x40	100
M10	45	HBNM10x45	150	HBNM10x45HDG	150	SSHBNM10x45	100
M10	50	HBNM10x50	75	HBNM10x50HDG	75	SSHBNM10x50	100
M10	55	HBNM10x55	75	HBNM10x55HDG	75	SSHBNM10x55	50
M10	60	HBNM10x60	75	HBNM10x60HDG	75	SSHBNM10x60	50
M10	65	HBNM10x65	75	HBNM10x65HDG	75	SSHBNM10x65	50
M10	70	HBNM10x70	75	HBNM10x70HDG	75	SSHBNM10x70	50
M10	75	HBNM10x75	75	HBNM10x75HDG	75	SSHBNM10x75	50
M10	80	HBNM10x80	75	HBNM10x80HDG	75	SSHBNM10x80	50
M10	90	HBNM10x90	50	HBNM10x90HDG	50	SSHBNM10x90	50
M10	100	HBNM10x100	50	HBNM10x100HDG	50	SSHBNM10x100	50
M12	25	HBNM12x25	250	HBNM12x25HDG	250
M12	30	HBNM12x30	250	HBNM12x30HDG	250
M12	35	HBNM12x35	200	HBNM12x35HDG	200
M12	40	HBNM12x40	200	HBNM12x40HDG	200	SSHBNM12x40	50
M12	45	HBNM12x45	200	HBNM12x45HDG	200	SSHBNM12x45	50
M12	50	HBNM12x50	150	HBNM12x50HDG	150	SSHBNM12x50	25
M12	55	HBNM12x55	150	HBNM12x55HDG	150	SSHBNM12x55	25
M12	60	HBNM12x60	150	HBNM12x60HDG	150	SSHBNM12x60	25
M12	65	HBNM12x65	150	HBNM12x65HDG	150	SSHBNM12x65	25
M12	70	HBNM12x70	150	HBNM12x70HDG	150	SSHBNM12x70	25
M12	75	HBNM12x75	150	HBNM12x75HDG	150	SSHBNM12x75	25
M12	80	HBNM12x80	100	HBNM12x80HDG	100	SSHBNM12x80	25
M12	85	HBNM12x85	100	HBNM12x85HDG	100
M12	90	HBNM12x90	100	HBNM12x90HDG	100	SSHBNM12x90	25
M12	100	HBNM12x100	100	HBNM12x100HDG	100	SSHBNM12x100	25
M16	25	HBNM16x25	100	HBNM16x25HDG	100
M16	30	HBNM16x30	100	HBNM16x30HDG	100
M16	35	HBNM16x35	100	HBNM16x35HDG	100
M16	40	HBNM16x40	100	HBNM16x40HDG	100
M16	45	HBNM16x45	100	HBNM16x45HDG	100
M16	50	HBNM16x50	100	HBNM16x50HDG	100	SSHBNM16x50	25
M16	55	HBNM16x55	75	HBNM16x55HDG	75	SSHBNM16x55	25
M16	60	HBNM16x60	75	HBNM16x60HDG	75	SSHBNM16x60	25
M16	65	HBNM16x65	75	HBNM16x65HDG	75	SSHBNM16x65	25
M16	70	HBNM16x70	75	HBNM16x70HDG	75	SSHBNM16x70	25
M16	75	HBNM16x75	75	HBNM16x75HDG	75	SSHBNM16x75	25
M16	80	HBNM16x80	75	HBNM16x80HDG	75	SSHBNM16x80	25
M16	90	HBNM16x90	75	HBNM16x90HDG	75	SSHBNM16x90	25
M16	100	HBNM16x100	50	HBNM16x100HDG	50	SSHBNM16x100	25
M16	110	HBNM16x110	50	HBNM16x110HDG	50	SSHBNM16x110	25
M16	120	HBNM16x120	50	HBNM16x120HDG	50	SSHBNM16x120	25
M16	130	HBNM16x130	50	HBNM16x130HDG	50	SSHBNM16x130	20
M16	140	HBNM16x140	40	HBNM16x140HDG	40	SSHBNM16x140	20
M16	150	HBNM16x150	40	HBNM16x150HDG	40	SSHBNM16x150	20
M20	35	HBNM20x35	50	HBNM20x35HDG	50
M20	40	HBNM20x40	50	HBNM20x40HDG	50
M20	45	HBNM20x45	50	HBNM20x45HDG	50
M20	50	HBNM20x50	50	HBNM20x50HDG	50
M20	55	HBNM20x55	50	HBNM20x55HDG	50
M20	60	HBNM20x60	50	HBNM20x60HDG	50	SSHBNM20x60	25
M20	65	HBNM20x65	50	HBNM20x65HDG	50	SSHBNM20x65	25
M20	70	HBNM20x70	50	HBNM20x70HDG	50	SSHBNM20x70	25
M20	75	HBNM20x75	50	HBNM20x75HDG	50	SSHBNM20x75	20
M20	80	HBNM20x80	50	HBNM20x80HDG	50	SSHBNM20x80	20
M20	90	HBNM20x90	30	HBNM20x90HDG	30	SSHBNM20x90	10
M20	100	HBNM20x100	30	HBNM20x100HDG	30	SSHBNM20x100	10
M20	110	HBNM20x110	30	HBNM20x110HDG	30	SSHBNM20x110	10
M20	120	HBNM20x120	30	HBNM20x120HDG	30	SSHBNM20x120	10
M20	130	HBNM20x130	30	HBNM20x130HDG	30	SSHBNM20x130	10
M20	140	HBNM20x140	25	HBNM20x140HDG	25	SSHBNM20x140	10
M20	150	HBNM20x150	25	HBNM20x150HDG	25	SSHBNM20x150	10

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.0	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	51.2	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05
