SUITS STEEL PIPE

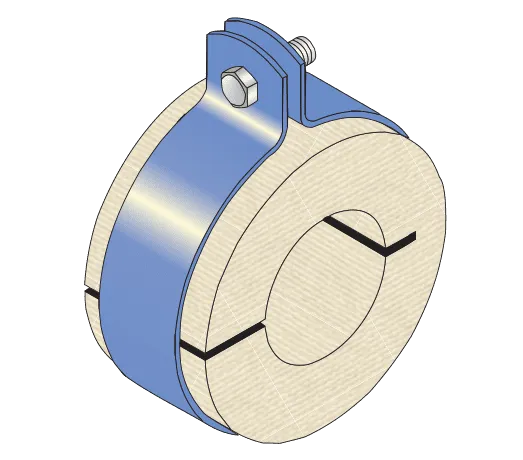

Band Clamp & Ferrule | FM129

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

PART NO. [ZINC]	PIPE DIA.	INS.	FERRULE [I.D x O.D]	FERRULE WIDTH	CLAMP MATERIAL [W x T]
FM129-015A	15nb	25	21 x 76	40	20 x 3
FM129-015B	15nb	38	21 x 102	40	20 x 3
FM129-015C	15nb	50	21 x 127	40	25 x 3
FM129-020A	20nb	25	27 x 76	40	20 x 3
FM129-020B	20nb	38	27 x 102	40	20 x 3
FM129-020C	20nb	50	27 x 127	40	25 x 3
FM129-025A	25nb	25	34 x 83	40	20 x 3
FM129-025B	25nb	38	34 x 115	40	25 x 3
FM129-025C	25nb	50	34 x 140	40	25 x 3
FM129-032A	32nb	25	43 x 89	40	20 x 3
FM129-032B	32nb	38	43 x 115	40	25 x 3
FM129-032C	32nb	50	43 x 140	40	40 x 3
FM129-040A	40nb	25	48 x 102	40	20 x 3
FM129-040B	40nb	38	48 x 127	40	25 x 3
FM129-040C	40nb	50	48 x 152	40	40 x 3
FM129-050A	50nb	25	60 x 115	40	25 x 3
FM129-050B	50nb	38	60 x 140	40	25 x 3
FM129-050C	50nb	50	60 x 165	40	40 x 3
FM129-050G	50nb	63	60 x 190	40	40 x 3
FM129-050H	50nb	75	60 x 203	40	40 x 3
FM129-065A	65nb	25	73 x 127	40	25 x 3
FM129-065B	65nb	38	73 x 152	40	40 x 3
FM129-065C	65nb	50	73 x 178	40	40 x 3
FM129-065G	65nb	63	73 x 203	40	40 x 3
FM129-065H	65nb	75	73 x 228	40	40 x 3
FM129-080A	80nb	25	89 x 140	40	40 x 3
FM129-080B	80nb	38	89 x 165	40	40 x 3
FM129-080C	80nb	50	89 x 190	40	40 x 3
FM129-080G	80nb	63	89 x 220	40	40 x 3
FM129-080H	80nb	75	89 x 240	40	40 x 3
FM129-100A	100nb	25	115 x 165	40	40 x 3
FM129-100B	100nb	38	115 x 190	40	40 x 3
FM129-100C	100nb	50	115 x 220	40	40 x 3
FM129-100G	100nb	63	115 x 240	40	40 x 3
FM129-100H	100nb	75	115 x 268	40	40 x 3
FM129-125A	125nb	25	140 x 190	40	40 x 3
FM129-125B	125nb	38	140 x 220	40	40 x 3
FM129-125C	125nb	50	140 x 240	40	40 x 3
FM129-125G	125nb	63	140 x 268	40	40 x 3
FM129-125H	125nb	75	140 x 300	40	40 x 3
FM129-150A	150nb	25	168 x 220	40	40 x 3
FM129-150B	150nb	38	168 x 240	40	40 x 3
FM129-150C	150nb	50	168 x 268	40	40 x 3
FM129-150G	150nb	63	168 x 300	40	40 x 3
FM129-150H	150nb	75	168 x 324	40	40 x 3
FM129-200A	200nb	25	220 x 275	40	40 x 3
FM129-200B	200nb	38	220 x 300	40	40 x 3
FM129-200C	200nb	50	220 x 324	40	40 x 3
FM129-200G	200nb	63	220 x 355	40	40 x 3
FM129-200H	200nb	75	220 x 375	40	40 x 3

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.0	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	51.2	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05

Band Clamp & Ferrule | FM129

Product Table

PIPE

CHART GUIDE
