SUITS STEEL PIPE

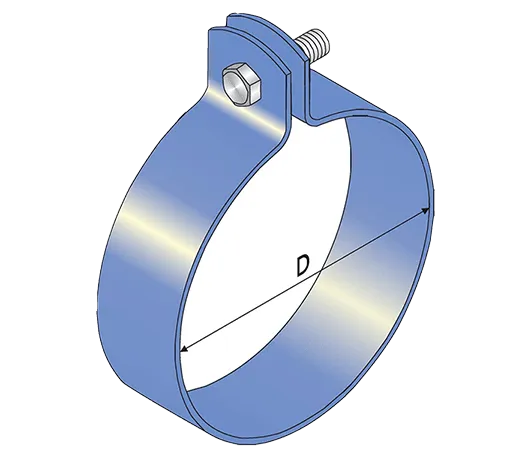

Band Clamps | FM127

Part No. 'Select an option' Category Band Clamps Tag Steel Pipe

Pipe Dia.

Finish

Clear

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

PART NO. [ZINC]	PART NO. [S/S]	PIPE DIA.	‘D’ [mm]	MATERIAL [W x T]	BOLT & NUT	BOX QTY
	SSFM127-013	15cu	13	25 x 1	M6 x 25	100
	SSFM127-015		15	25 x 1	M6 x 25	100
	SSFM127-016		16	25 x 1	M6 x 25	100
	SSFM127-020	20cu	20	25 x 1	M6 x 25	100
	SSFM127-021	15nb	21	25 x 1	M6 x 25	100
FM127-021		15nb	21	25 x 1	M8 x 25	100
	SSFM127-022		22	25 x 1	M6 x 25	100
FM127-027		20nb	27	25 x 1	M8 x 25	100
	SSFM127-027	20nb	27	25 x 1	M6 x 25	100
	SSFM127-028		28	25 x 1	M6 x 25	100
	SSFM127-032	32cu	32	25 x 1	M6 x 25	100
FM127-034		25nb	34	25 x 1	M8 x 25	100
	SSFM127-034	25nb	34	25 x 1	M6 x 25	100
	SSFM127-035		35	25 x 1.2	M6 x 25	100
	SSFM127-038	40cu	38	25 x 1.2	M6 x 25	100
	SSFM127-042		42	25 x 1.2	M6 x 25	100
FM127-043		32nb	43	25 x 1.2	M8 x 25	50
FM127-048	SSFM127-048	40nb	48	25 x 1.2	M8 x 25	50
	SSFM127-051	50cu	51	25 x 1.2	M8 x 25	50
	SSFM127-054		54	25 x 1.2	M8 x 25	50
	SSFM127-056		56	25 x 1.2	M8 x 25	50
FM127-060	SSFM127-060	50nb	60	25 x 1.2	M8 x 25	50
	SSFM127-064	65cu	64	25 x 1.2	M8 x 25	50
	SSFM127-070		70	25 x 1.2	M8 x 25	50
FM127-076	SSFM127-076	65nb	76	25 x 1.2	M8 x 25	50
	SSFM127-083		83	32 x 1.6	M8 x 25	50
FM127-089	SSFM127-089	80nb	89	32 x 1.6	M8 x 25	50
	SSFM127-108		108	32 x 1.6	M8 x 25	10
	SSFM127-112	100nb	112	32 x 1.6	M8 x 25	10
FM127-115		100nb	115	32 x 1.6	M8 x 25	25
	SSFM127-127	125cu	127	32 x 1.6	M8 x 25	10
FM127-140		125nb	140	32 x 1.6	M10 x 25	25
	SSFM127-152	150cu	152	25 x 3	M12 x 45	10
	SSFM127-162	150nb	162	25 x 3	M12 x 45	10
FM127-168		150nb	168	40 x 3	M12 x 45
	SSFM127-200	200cu	200	25 x 3	M12 x 45	10
FM127-220		200nb	220	50 x 3	M12 x 45
	SSFM127-252	250cu	252	25 x 3	M12 x 45	10

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.0	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	51.2	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05

Band Clamps | FM127

Product Table

PIPE

CHART GUIDE

ENGINEERING CATALOGUE 9.3

CONSUMABLES CATALOGUE 3.1

SUPA
CATALOGUE 4.5

Related Products

You may also like…

Hanger Attachment | FMBS

Eye Nuts

Something looks off
or need more detail?

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	32	0.259	0.790
40	40	0.331	1.239
50	50	0.420	1.940
56	56	0.471	2.434
63	63	0.536	3.087
75	75	0.644	4.383
90	90	0.903	6.313
110	110	1.350	9.424
125	125	1.750	12.171
160	160	2.840	19.947
200	200	3.580	31.216
250	250	5.630	48.774
315	315	8.920	77.442

NOMINAL SIZE	PIPE O.D [mm]	CUTTER O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
225	269	257	22	61.74
300	346	336	35	105.70
375	427	415	51	161.39
450	512	504	67	225.96
535	594	584	86	310.89
600	678	664	111	393.60
675	752	733	133	490.66
750	802	783	157	598.80
