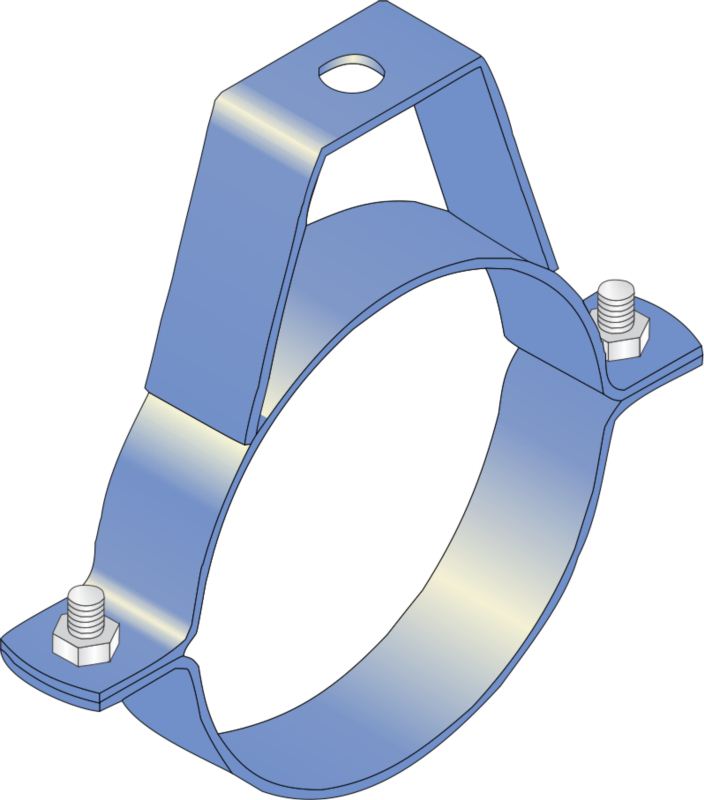

Light Duty Yoke Clamp | FM8

Part No. 'Select an option' Category Yoke Clamps

Product Table

Browse part numbers, sizes and technical data

PIPE

CHART GUIDE

PART NO. [HDG]	PIPE DIA.	D’ [mm]	HOLE DIA	BOLT	MATERIAL [W x T]	BOX QTY
FM8-020	20cu	19	11ø	M6 x 25	20 x 3	25
FM8-021	15nb	21	11ø	M6 x 25	20 x 3	25
FM8-025	25cu	25	11ø	M6 x 25	20 x 3	25
FM8-027	20nb	27	11ø	M6 x 25	20 x 3	25
FM8-032	32cu	32	11ø	M6 x 25	20 x 3	25
FM8-034	25nb	34	11ø	M6 x 25	20 x 3	25
FM8-038	40cu	38	11ø	M6 x 25	20 x 3	20
FM8-043	32nb	43	11ø	M6 x 25	20 x 3	20
FM8-048	40nb	48	11ø	M6 x 25	20 x 3	20
FM8-051	50cu	51	11ø	M6 x 25	20 x 3	20
FM8-060	50nb	60	11ø	M6 x 25	20 x 3	20
FM8-064	65cu	64	11ø	M6 x 25	20 x 3	20
FM8-076	65nb/80cu	76	11ø	M6 x 25	20 x 3	20
FM8-089	80nb	89	11ø	M6 x 25	20 x 3	20
FM8-102	102cu	102	11ø	M6 x 25	20 x 3	20
FM8-115	100nb	115	11ø	M8 x 30	25 x 3	20
FM8-127	125cu	127	11ø	M8 x 30	25 x 3	10
FM8-140	125nb	140	11ø	M8 x 30	25 x 3	10
FM8-152	150cu	152	11ø	M8 x 30	25 x 5	10
FM8-168	150nb	168	11ø	M8 x 30	25 x 5	10

Something looks off
or need more detail?

If a page is loading oddly, you believe SOME information needs updating, or something’s missing—let us know.

Thanks for helping us keep things accurate.

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	13.7	0.63	0.7
10	17.1	0.84	0.96
15	21.3	1.27	1.47
20	26.7	1.69	2.04
25	33.4	2.5	3.05
32	42.2	3.39	4.36
40	48.3	4.05	5.37
50	60.3	5.44	7.6
65	73	8.63	11.72
80	88.9	11.29	16.06
90	101.6	13.57	19.95
100	114.3	16.07	24.28
125	141.3	21.77	34.68
150	168.3	28.26	46.91
200	219.1	42.55	74.83
250	273.1	60.31	111.2
300	323.9	79.73	151.97
350	355.6	94.55	181.82
400	406.4	123.3	237.31
450	457	155.8	299.98
500	508	183.42	362.12
600	610	255.41	515.12
800	813	342.91	818.35
900	914	420.42	1022.98

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
8	14	0.68	0.74
10	17	0.89	1.01
15	21	1.27	1.47
20	27	1.65	2.02
25	34	2.52	3.11
32	43	3.24	4.26
40	48	3.73	5.11
50	60	5.24	7.46
65	76	6.69	10.42
80	89	8.68	13.82
100	114	12.4	21.11
125	140	16.5	29.75
150	165	19.6	38.55
200	219	42.53	74.81
250	273	60.29	111.14
300	324	73.82	146.81
350	355	81.28	170.05
400	406	93.21	211.05
450	457	105.14	255.75
500	508	117.07	304.85
600	610	140.94	414.85

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	12.7	0.30	0.39
18	15.9	0.43	0.58
20	19.0	0.52	0.75
25	25.4	0.83	1.25
32	31.8	1.05	1.72
40	38.1	1.27	2.27
50	51.2	1.70	3.57
65	63.5	2.14	5.07
80	76.2	3.42	7.60
90	88.9	4.00	9.76
100	101.6	4.58	12.18
125	127.0	5.74	17.77
150	152.4	8.58	25.86
175	177.8	10.03	33.74
200	203.2	11.48	42.63

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
32	38	0.34	1.14
40	43.1	0.50	1.76
50	56.0	0.67	2.59
65	69.1	1.0	4.14
80	82.7	1.17	5.58
100	110.4	2.00	9.85
150	160.5	3.84	21.51
225	250.7	9.00	48.74
300	315.9	14.50	85.15
375	400	23.34	133.73

NOMINAL SIZE	O.D [mm]	MASS PIPE [kg/m]	M.P FILLED w/ WATER [kg/m]
15	21	0.15	0.33
20	27	0.25	0.56
25	34	0.39	0.88
32	42	0.62	1.42
40	48	0.80	2.06
50	60	1.26	3.22
65	75	2.13	5.65
80	89	2.31	7.33
100	114	4.50	12.35
125	140	7.43	19.70
150	160	9.67	27.33
155	168	10.00	28.85
200	225	15.83	47.23
225	250	15.66	39.40
250	280	24.83	73.89
300	315	31.60	102.25
375	400	51.66	162.05
