Browse part numbers, sizes and technical data

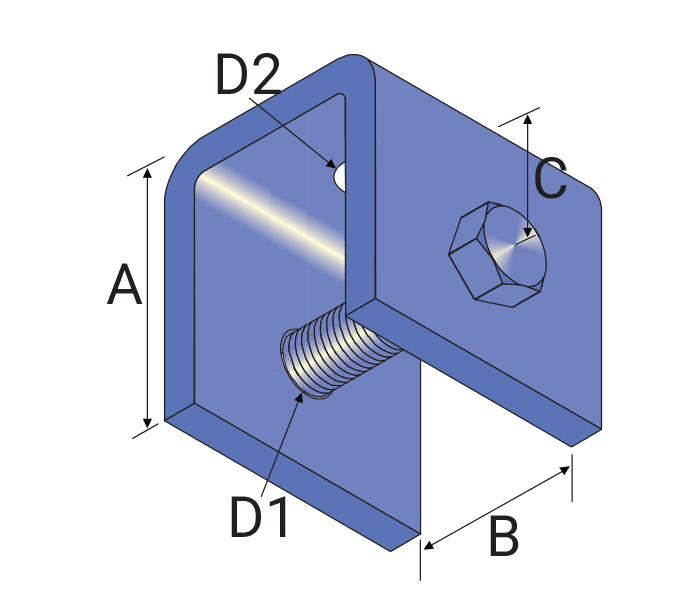

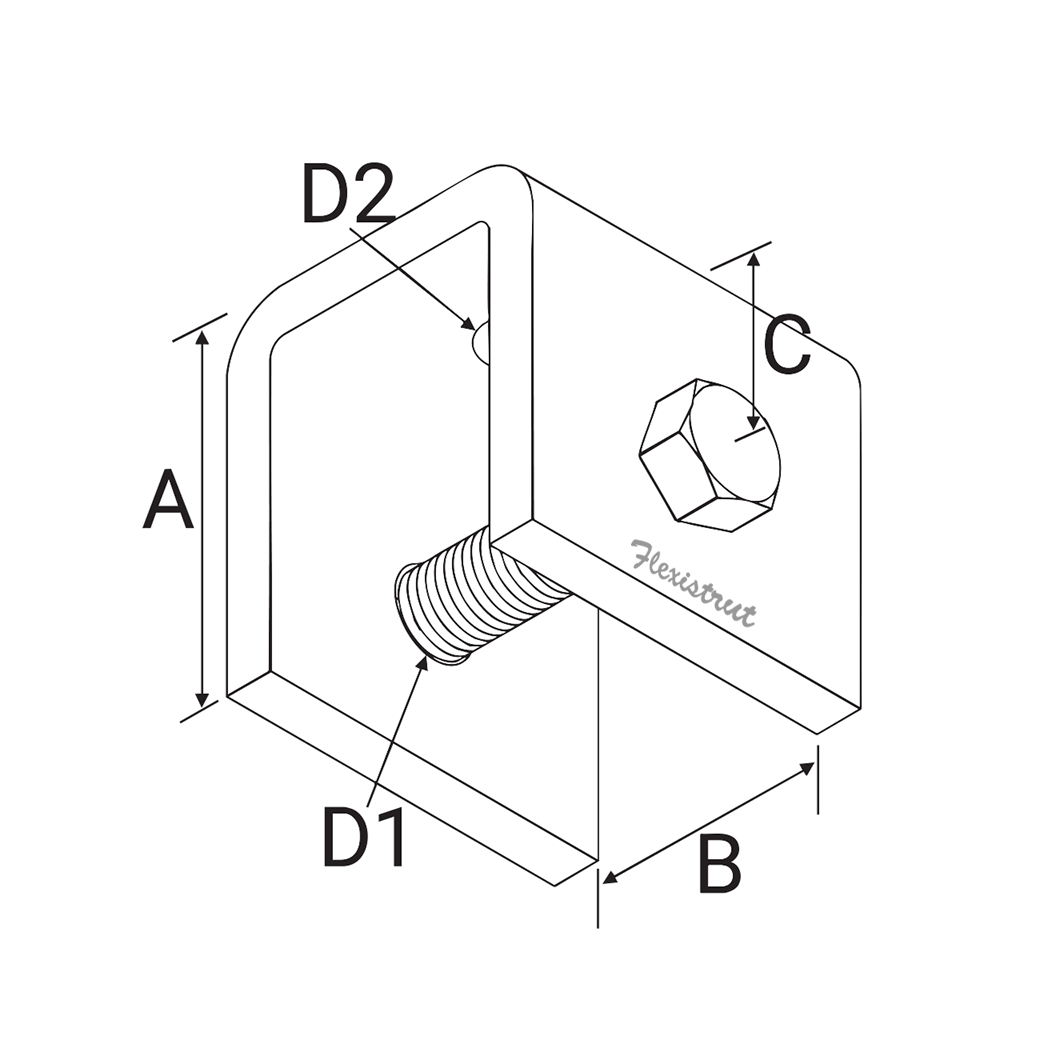

| PART NO. [RAW] | ‘A’ [mm] | ‘B’ [mm] | ‘C’ [mm] | ‘D1’ [mm] | ‘D2’ [mm] | MATERIAL [W x T] |
|---|---|---|---|---|---|---|
| FM181-M10 | 75 | 35 | 20 | 14ø | 11ø | 50 x 10 |
| FM181-M12 | 75 | 35 | 20 | 14ø | 14ø | 50 x 10 |
| FM181-M16 | 75 | 50 | 30 | 18ø | 18ø | 75 x 10 |
| FM181-M20 | 90 | 50 | 30 | 22ø | 22ø | 75 x 10 |
| FM181-M24 | 125 | 61 | 40 | 26ø | 26ø | 100 x 12 |
