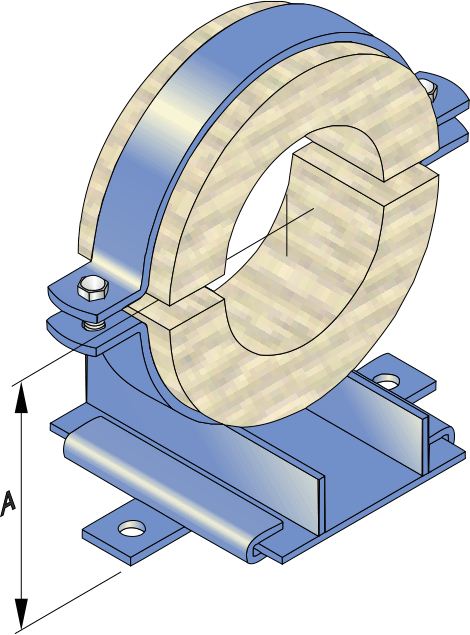

Heavy Duty Slide Guides and Timber Ferrule for Copper Pipe
| PART NO. | A | PIPE DIA. | INS. | FERRULE DIA. |
| FM143-125D | 147 | 125cu | 25 | 127 x 178 |
| FM143-125E | 160 | 125cu | 38 | 127 x 203 |
| FM143-125F | 172 | 125cu | 50 | 127 x 228 |
| FM143-150D | 160 | 150cu | 25 | 152 x 203 |
| FM143-150E | 172 | 150cu | 38 | 152 x 228 |
| FM143-150F | 184 | 150cu | 50 | 152 x 252 |
| FM143-200D | 184 | 200cu | 25 | 203 x 252 |
| FM143-200E | 196 | 200cu | 38 | 203 x 275 |
| FM143-200F | 208 | 200cu | 50 | 203 x 300 |
| FM143-250D | 208 | 250cu | 25 | 254 x 300 |
| FM143-250E | 223 | 250cu | 38 | 254 x 330 |
| FM143-250F | 236 | 250cu | 50 | 254 x 355 |
