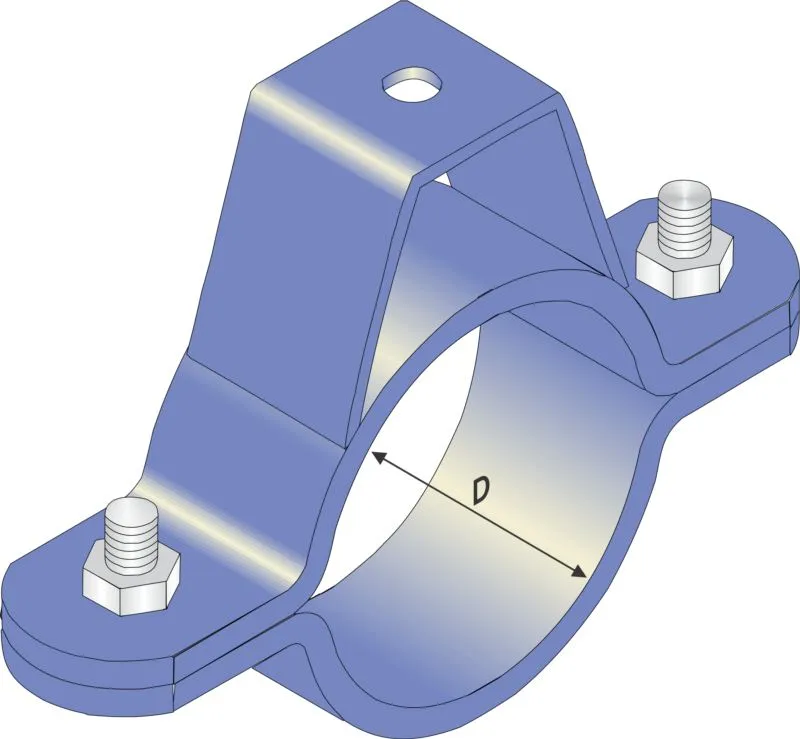

Medium Duty Yoke Clamp
PART NO. | PIPE DIA. | MATERIAL | D | BOLT | HOLE DIA. ‘H’ |
FM18-064 | 64cu | 40×6 | 64 | M12x45 | 14 |
FM18-083 | 83ns | 40×6 | 83 | M12x45 | 14 |
FM18-102 | 100cu | 40×6 | 102 | M12x45 | 14 |
FM18-115 | 100nb | 40×6 | 115 | M12x45 | 14 |
FM18-127 | 125cu | 40×6 | 127 | M12x45 | 14 |
FM18-140 | 125nb | 40×6 | 140 | M12x45 | 14 |
FM18-152 | 152cu | 40×6 | 152 | M12x45 | 14 |
FM18-168 | 150nb | 40×6 | 168 | M12x45 | 14 |
FM18-175 | 175ns | 40×6 | 175 | M12x45 | 14 |
FM18-190 | 190ns | 40×6 | 190 | M12x45 | 14 |
FM18-203 | 200cu | 40×6 | 203 | M12x45 | 14 |
FM18-220 | 200nb | 40×6 | 220 | M12x45 | 14 |
FM18-228 | 228ns | 40×6 | 228 | M12x45 | 14 |
FM18-240 | 240ns | 40×6 | 240 | M12x45 | 14 |
FM18-252 | 250cu | 40×6 | 252 | M12x45 | 14 |
FM18-275 | 250nb | 40×6 | 275 | M12x45 | 18 |
